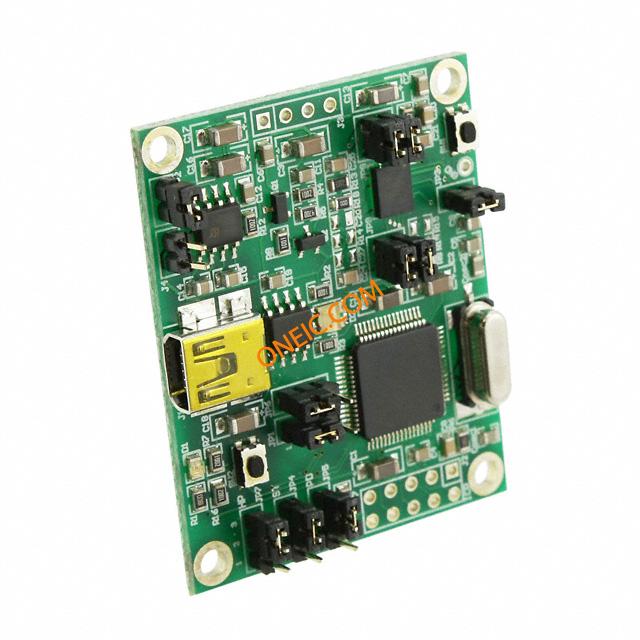

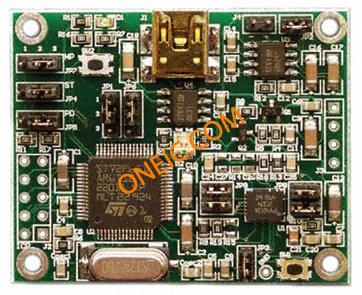

STEVAL-MKI104V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | MEMS Demonstration Board Based On The LPY403AL Acceleration Sensor Development Tools MEMS Sensor Module Development Tools DEMO BOARD LPY403AL SMD BOARD DEMO MEMS LPY403AL STEVAL-MKI104V1, Demonstration Board, Demonstration Board ST7, LPY403AL, MEMS, DEMO BOARD IC,STEVAL-MKI104V1 |
| 分类 |
商业参数
| 最小起订量 | 5 | 单位包装 | 1 |
| 产品类别 | Acceleration Sensor Development Tools | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85439000 | 汽车级 | NO |
| 无铅定义 | RoHS-conform | ||
电气参数
| 弹簧刚度 | 0.02°/s | 最大电源电流 | 6.8mA |
| 接口 | Analog | 输出类型 | Digital |
| 灵敏度 | 33.3mdps/LSB | 传感器类型 | Gyroscope, 2 Axis |
| 感应角度 | Triple Axis | 感应范围 | ±30°/sec |
| 供电电压 | 5V, USB | 最小输入电压 | 2.7V |
机械参数
| 重量 | 0.08 | 占位面积 | 20mm² |
| 包装方式 | Bulk | 安装类型 | SMD |
| 封装形式 | LGA28 | 顶部端接 | 85°C |
| 最小工作高度 | -40°C | ||
产品信息
| 类型 | Development Kit | 密度 | 0.01dps/rtHz |
| 内容 | Board | 嵌入式 | Yes, MCU, 8-Bit |
| 产品特性 | :Working in Two modes Analogue(AWM) and Digital(DWM) | 套件类型 | :Sensor |
| 匹配码 | LPY403AL DEMO BOARD | 技术 | MEMS |
| 套件内容 | Demonstration Board | 制造商全称 | :ST72x |
| 卡标准 | Demonstration Board | 轴数 | 2 |
| 标准交期 | 18 weeks | 工具类型/特性 | LIS302DL |
| 使用的IC/零件 | LPY403AL | 芯片组制造商 | :STMicroelectronics |
| 应用细节 | :MEMS Device | ||
