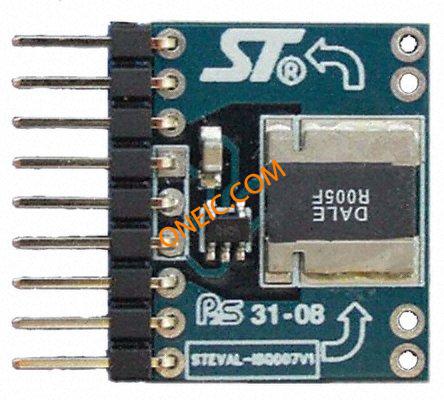

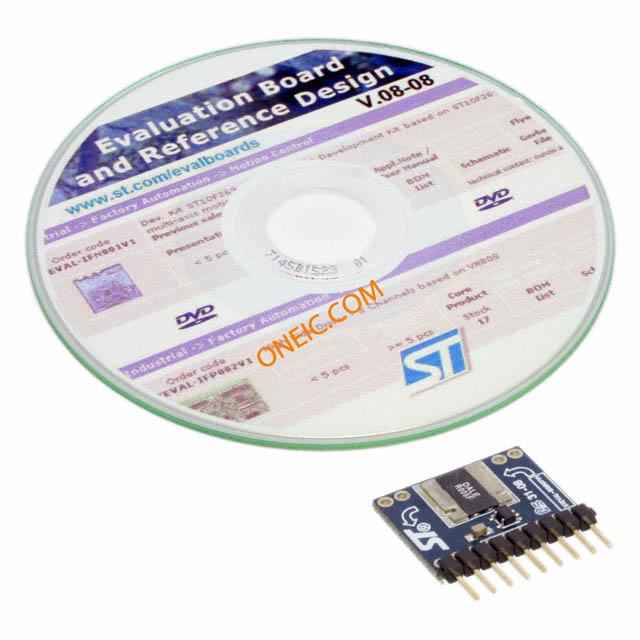

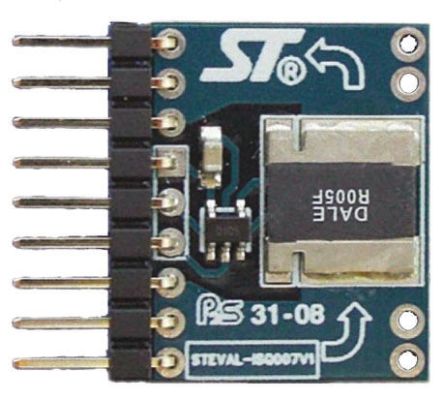

STEVAL-ISQ007V1
| 制造商 | |
| 描述 | Evaluation Board For High Side Current Sense Amplifier Power Management IC Development Tools HIGH-SIDE CURRENT SENSE DEMO TSC101 BOARD EVAL BASED ON TSC101 STEVAL-ISQ007V1, Development Kit, Power Management, Demonstration Board STEVAL-ISQ007V1 High-Side Current-Sense Amplifier Demonstration Board based on TSC101 STMicroelectronics 评估测试板 电源管理 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 压摆率 | 0.9 V/µs | 输出类型 | Single-Ended |
| 额定电压 | 4 V to 24 V | 供电电压 | 4 V ~ 24 V |
| 输出电流/通道 | 60mA | 主IC供电电流 | 165µA |
机械参数
| 包装方式 | Bulk | -3dB带宽 | 450kHz |
| 电路板厚度 | Fully Populated | ||
产品信息
| 名称 | 评估测试板 | 类型 | Development Kit |
| 内容 | Board, Software | 技术 | Power Management |
| 套件内容 | Demonstration Board | 卡标准 | Development Kit |
| 放大器类型 | Current Sense | 每IC通道数 | 1 - Single |
| 工具类型/特性 | TSC101 | 使用的IC/零件 | TSC101 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
TSC101AILT
stmicroelectronics
SP Amp Current Sense Amp Single 24V 5-Pin SOT-23 T/R I-MonIC SOT23-5 SMD IC OPAMP CUR SENS 500KHZ SOT23-5 TSC101AILT, Current Sensing Amplifier Single 5-Pin SOT-23 Special Purpose Amplifiers HIGH SIDE CURRENT 20V/V AMPLIFIER IC, AMP HISIDE CURR SENSE SOT23-5 Operational amplifier; 500kHz; 4÷24VDC; Channels:1; SOT23-5 单 电流感应放大器, 5针 SOT-23封装 Current Sense Amplifiers HIGH SIDE CURRENT 20V/V AMPLIFIER
TSC101BILT
stmicroelectronics
SP Amp Current Sense Amp Single 24V 5-Pin SOT-23 T/R HIGH-SIDE.CURRE IC OPAMP CUR SENS 670KHZ SOT23-5 TSC101BILT, Current Sensing Amplifier Single 5-Pin SOT-23 Special Purpose Amplifiers HIGH SIDE CURRENT INT FIXED GAIN 50V/V IC, AMP HISIDE CURR SENSE SOT23-5 单 电流感应放大器, 5针 SOT-23封装 Current Sense Amplifiers HIGH SIDE CURRENT INT FIXED GAIN 50V/V
TSC101CILT
STMicroelectronics
Special Purpose Amplifiers HIGH SIDE CURRENT INT FIXED 100 V/V SP Amp Current Sense Amp Single 24V 5-Pin SOT-23 T/R IC OPAMP CUR SENS 450KHZ SOT23-5 TSC101CILT, Current Sensing Amplifier Single 5-Pin SOT-23 单 电流感应放大器, 5针 SOT-23封装 Current Sense Amplifiers HIGH SIDE CURRENT INT FIXED 100 V/V
