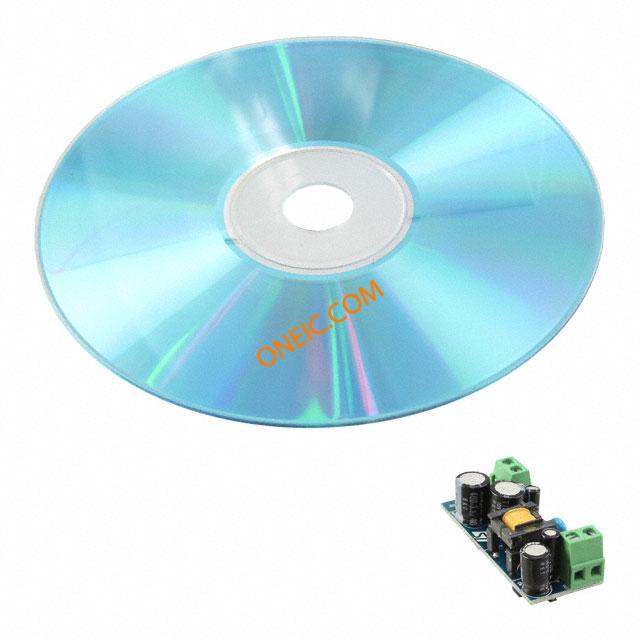

STEVAL-ISA137V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | BOARD DEMO FLYBACK VIPER06 |
| 分类 |
商业参数
| 其他名称 | 497-14485 | 标准包装数量 | 1 |
电气参数
| 额定输出功率 | 3W | 输出电流 | 600mA |
| 稳压器拓扑 | Flyback | 开关频率 | 115kHz |
| 最小输入电压 | 5V | ||
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 内容 | Board | 主要用途 | AC/DC, Primary Side |
| 输出及类型 | 1, Isolated | 使用的IC/零件 | VIPer06 |
文档与媒体
相关型号
VIPER06HN
stmicroelectronics
Off Line Converter 7-Pin DIP Tube AC to DC Switching Converter Off-Line Switcher 103kHz to 127kHz 7-Pin DIP VIPERPLUS IC OFFLINE SWITCH PWM SMPS 7PDIP AC/DC Converters VIPer 800V Plus Fixed Freq 115kHz SMPS PDIP-7 THT
VIPER06LSTR
STMicroelectronics
AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 10-Pin SSO SMPS SSOP-10 SMD IC OFFLINE SWITCH PWM 10-SSOP AC/DC Converters VIPer 800V Plus Fixed Freq 60kHz Power Supply IC SSO-10, VIPER06LSTR, ST 交直流转换器, 10引脚 SSO封装
VIPER06XSTR
STMicroelectronics
AC to DC Switching Converter Off-Line Switcher 27kHz to 33kHz 10-Pin SSO IC OFFLINE SWITCH PWM 10-SSOP AC/DC Converters VIPer 800V Plus Fixed Freq 30kHz VIPER06 Series 115 MHz 1.6 mA Fixed Frequency VIPerTM Plus Family - SSOP-10 Power Supply IC SSO-10, VIPER06XSTR, ST 交直流转换器, 10引脚 SSO封装 SMPS SSOP-10 SMD
VIPER06LS
STMicroelectronics
AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 10-Pin SSO SMPS SSOP-10 SMD IC OFFLINE SWITCH PWM 10-SSOP AC/DC Converters Fixed VIPer Plus 800V 60kHz 30mW
VIPER06XS
STMicroelectronics
AC to DC Switching Converter Off-Line Switcher 27kHz to 33kHz 10-Pin SSO IC OFFLINE SWITCH PWM 10-SSOP AC/DC Converters Fixed VIPer Plus 800V 30kHz 30mW Off Line Converter 10-Pin SSO Tube
VIPER06LN
STMicroelectronics
AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 7-Pin DIP SMPS DIP-7 THT IC OFFLINE SWITCH PWM SMPS 7PDIP AC/DC Converters VIPer 800V Plus Fixed Freq 60kHz
VIPER06HSTR
STMicroelectronics
IC OFFLINE SWITCH PWM 10-SSOP VIPERPLUS AC/DC Converters VIPer 800V Plus Fixed Freq 115kHz SMPS SSOP-10 SMD
VIPER06XN
STMicroelectronics
IC OFFLINE SWITCH PWM SMPS 7PDIP VIPERPLUS AC/DC Converters VIPer 800V Plus Fixed Freq 30kHz SMPS PDIP-7 THT
VIPER06HS
STMicroelectronics
IC OFFLINE SWITCH PWM 10-SSOP AC/DC Converters Fixed VIPer Plus 800V 115kHz 30mW AC/DC CONVERTER, 800V, 115KHZ, 10SSOP STMicroelectronics 交流/直流 LED 驱动器, PWM 控制器, 115 kHz, 10针 SSO SMPS SSOP-10 SMD
