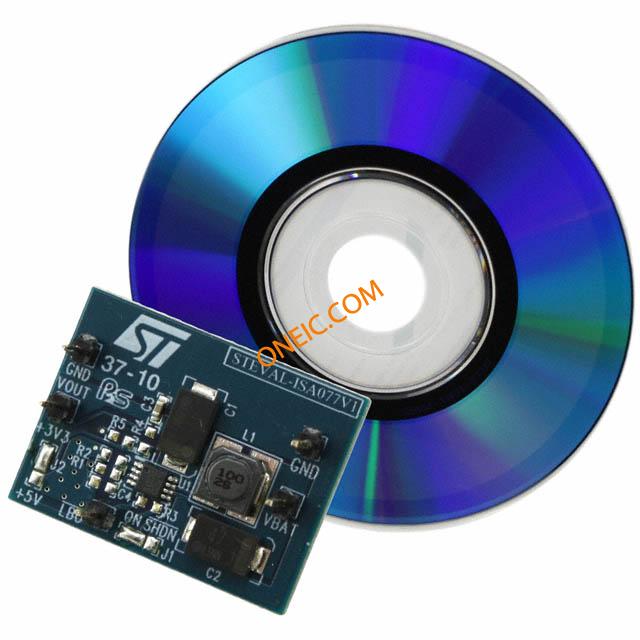

STEVAL-ISA077V1
| 制造商 | |
| 描述 | High Efficiency Synchronous Rectifier Step-Up Converter Demonstration Board Based On The L6920DB Power Management IC Development Tools High EFF Synch REC L6920DB Demo BRD EVAL BOARD FOR L6920DB DEMO BOARD, L6920DB ADJ SYNC STEP-UP CONV |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85423990 |
电气参数
| 元件数量 | :L6920DB | 稳压器拓扑 | Boost |
| 开关频率 | Up to 1MHz | 最小输入电压 | 1.8V, 3.3V, 5V |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 套件类型 | :Power Management | 主要用途 | DC/DC, Step Up |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | L6920DB |
| 使用的IC/零件 | L6920 | 芯片组制造商 | :STMicroelectronics |
| 应用细节 | :Synchronous Boost Converter | ||
文档与媒体
相关型号
L6920DB
stmicroelectronics
Conv DC-DC Single Step Up 0.8V to 5.5V 8-Pin MSOP Tube DC-DC 5.5V 0.8A U MSOP-8 SMD IC REG BST SYNC 3.3/5V/ADJ 8MSOP L6920DB, DC-DC Converter, Adjustable/Fixed 3.3, 5, 1.8 to 5.2V, Step Up, 1MHz, 8-Pin MSOP Voltage Regulators - Switching Regulators Synchronous Rectifer Step Up Converter STEP UP CONVERTER SYNC RECTFR, SMD DC/DCCON.1.8-5.2/3.3/5V DC-DC converter; step up; Uin:0.8÷5.5V; Uout:1.8÷5.2V; 500mA Switching Voltage Regulators Synchronous Rectifer Step Up Converter
L6920DBTR
STMicroelectronics
Conv DC-DC Single Step Up 0.8V to 5.5V 8-Pin MSOP T/R STEP UP CONVERT IC REG BST SYNC 3.3/5V/ADJ 8MSOP Voltage Regulators - Switching Regulators SYNCRONOUS RECT. STEP UP CONVERTER Switching Voltage Regulators SYNCRONOUS RECT. STEP UP CONVERTER DC-DC 5.5V 0.8A U MSOP-8 SMD
