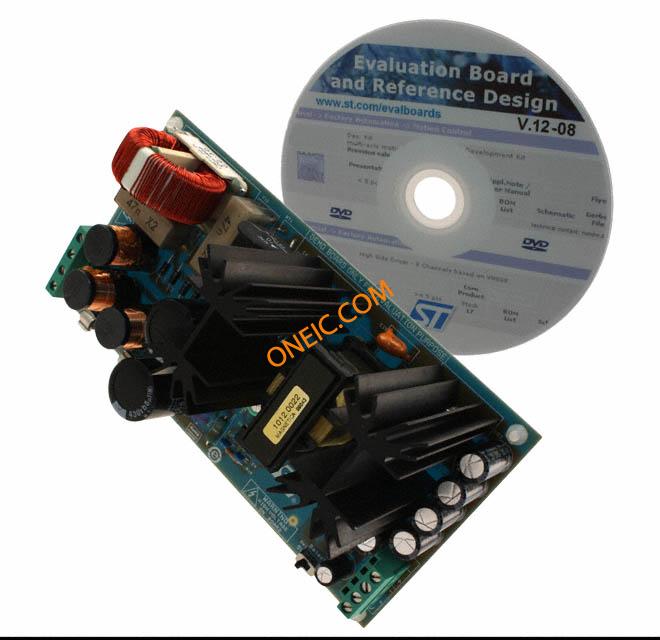

STEVAL-ISA054V1
| 制造商 | |
| 描述 | Auxiliary Power Supply Demonstration Board Based On The STW9N150 Power Management IC Development Tools 100W 3PH AUX PW SUPP DEMO BOARD BOARD DEMO STW9N150 100W 3PHASE |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定输出功率 | 100W | 额定电压 | 180 V to 265 V, 400 V |
| 输出电流 | 4A, 1A | 供电电压 | 24V, 3.3V or 5V |
| 稳压器拓扑 | Flyback | 最大额定电流 | 4A, 1A |
| 开关频率 | 250kHz | 最小输入电压 | 24V, 3.3V or 5V |
机械参数
| 电路板厚度 | Fully Populated | 供应商器件封装 | Fully Populated |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 应用领域 | AC/DC, Primary Side | 主要用途 | AC/DC, Primary Side |
| 输出及类型 | 2, Isolated | 工具类型/特性 | STW9N150 |
| 使用的IC/零件 | L5970, STW9N150, UC3844B | ||
