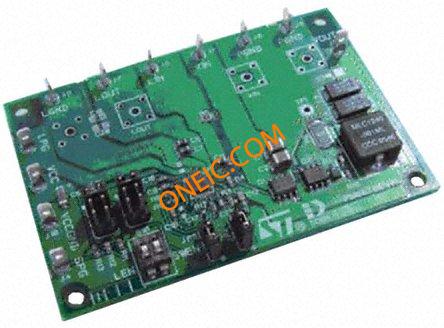

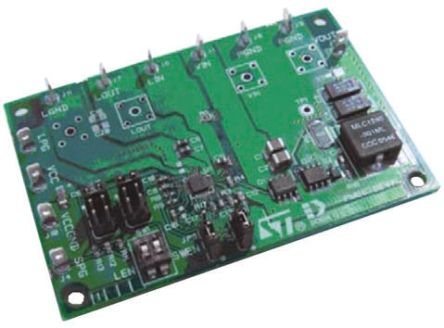

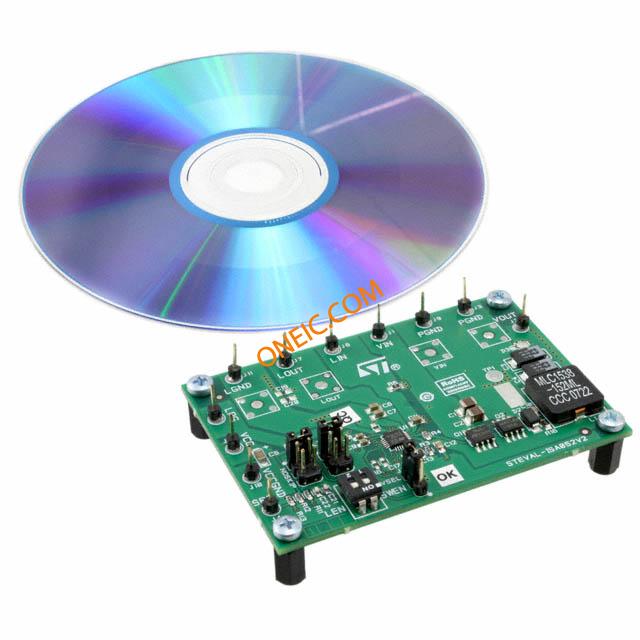

STEVAL-ISA052V2
| 制造商 | STMicroelectronics N.V. |
| 描述 | Evaluation Board For The PM6675AS High Efficiency Step Down Controller With Embedded 2 A LDO Regulator Power Management IC Development Tools PM6675A EVAL KIT STEP-DOWN 2A LDO BOARD EVAL BASED ON PM6675A STEVAL-ISA052V2, Development Kit, Power Management, Evaluation Board for PM6675AS CONVERTEREVALBOARD STMicroelectronics 评估测试板 电源管理 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-8413 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 4.5 V to 36 V | 稳压器拓扑 | Buck |
| 最小输入电压 | 1.5V, 0.6 ~ 3.3V | ||
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
产品信息
| 名称 | 评估测试板 | 类型 | Development Kit |
| 内容 | Board | 技术 | Power Management |
| 套件内容 | Evaluation Board for PM6675AS | 主要用途 | DC/DC, Step Down with LDO |
| 卡标准 | Development Kit | 输出及类型 | 2, Non-Isolated |
| 工具类型/特性 | PM6675AS | 使用的IC/零件 | PM6675AS |
环境参数
| 机械寿命 | NRND: Not recommended for new designs. | ||
相关型号

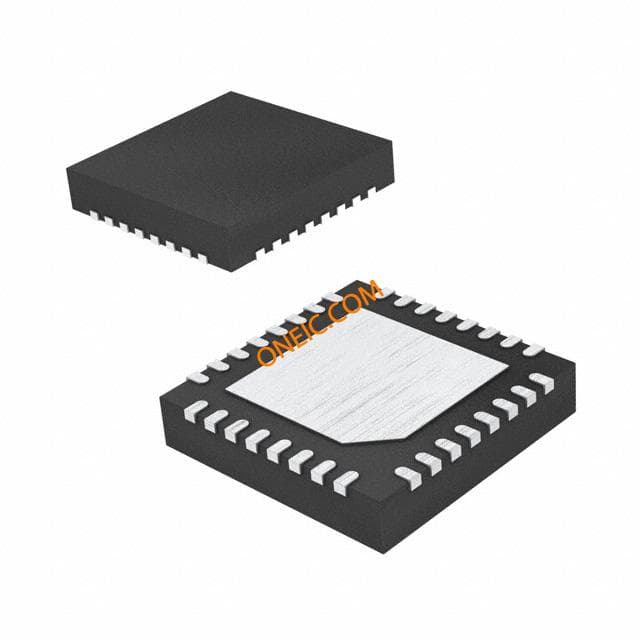

PM6675STR
stmicroelectronics
Controller 24-Pin VFQFPN T/R GDDR2/3 POWER IC REG DL BUCK/LINEAR 24-VFQFPN LDO Voltage Controllers Complete DDR2/3 Mem Pwr supply controllr PM6675 Series 2 A Step Down Controller LDO Regulator - VFQFPN-24
¥7.5809
详情
PM6675ASTR
stmicroelectronics
Controller 24-Pin VFQFPN T/R GDDR2/3 POWER IC REG DL BUCK/LINEAR 24-VFQFPN LDO Voltage Controllers Complete DDR2/3 Mem Pwr supply controllr PM6675 Series 2 A Step Down Controller LDO Regulator - VFQFPN-24
¥8.6458
详情
PM6675AS
stmicroelectronics
Controller 24-Pin VFQFPN IC REG DL BUCK/LINEAR VFQFPN24 PM6675AS, DC-DC Controller, 36V Step-Down, 24-Pin, VFQFPN, VFQFPN DC/DCControllerStep-Downwith2ALDO
¥15.9768
详情
