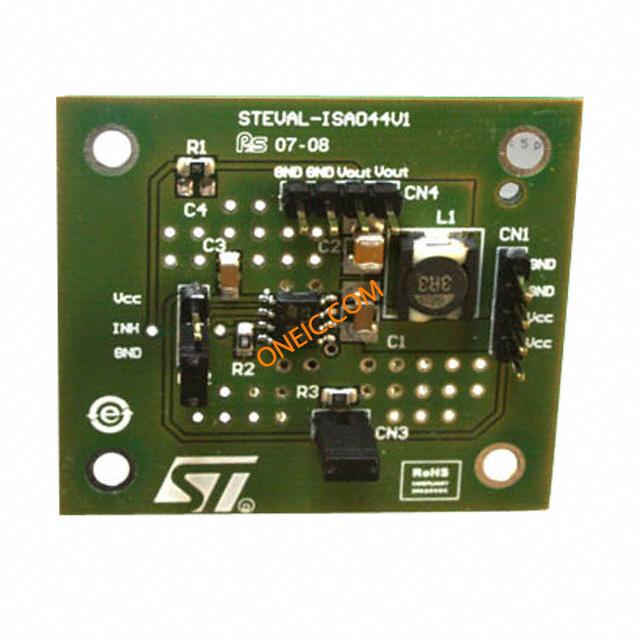

STEVAL-ISA044V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | Evaluation Board For 3 A Synchronous 900 KHz Step Down DC DC Converter Power Management IC Development Tools 3A SYNC 900 KHZ BUCK DC-DC CNVRT ST1S10 BOARD EVAL BASED ON ST1S10 |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-8216 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
合规参数
| RoHS | No | ||
电气参数
| 额定电压 | 2.5 V to 18 V | 输出电流 | 3A |
| 稳压器拓扑 | Buck | 开关频率 | 900kHz |
| 最小输入电压 | 2.5 V ~ 18 V | ||
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 内容 | Board, Software |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | ST1S10 | 使用的IC/零件 | ST1S10 |
环境参数
| 机械寿命 | Obsolete | ||
文档与媒体
相关型号
ST1S10PUR
stmicroelectronics
Conv DC-DC Single Step Down 2.5V to 18V 8-Pin DFN EP T/R DC-DC 20V 3.0A D DFN8 SMD IC REG BUCK SYNC ADJ 3A DFN8 Voltage Regulators - Switching Regulators 3A 900kHz Monolithic Sync Step Down Reg BUCK, 2.5-18V, 900KHZ, 3A, 0.8V, 8DFN STMicroelectronics 降压 开关稳压器, 3A, 可调输出, 0.8 → 5 V, 1.2 MHz, 8针 DFN封装 Switching Voltage Regulators 3A 900kHz Monolithic Sync Step Down Reg
ST1S10PHR
stmicroelectronics
Conv DC-DC Single Step Down 2.5V to 18V 8-Pin PowerSO T/R DC-DC 18V 3.0A D PWRSO-8 SMD IC REG BUCK SYNC ADJ 3A PWRSO-8 Voltage Regulators - Switching Regulators VOLTAGE REGULATOR DC-DC converter; step down; Uin:2.5÷18V; Uout:0.8÷15.3V; 3A; SO8 Switching Regulator 3 A PowerSO-8, ST1S10PHR, ST STMicroelectronics 开关稳压器, 可调输出, 1.2 MHz, 8针 PowerSO封装 Switching Voltage Regulators VOLTAGE REGULATOR
