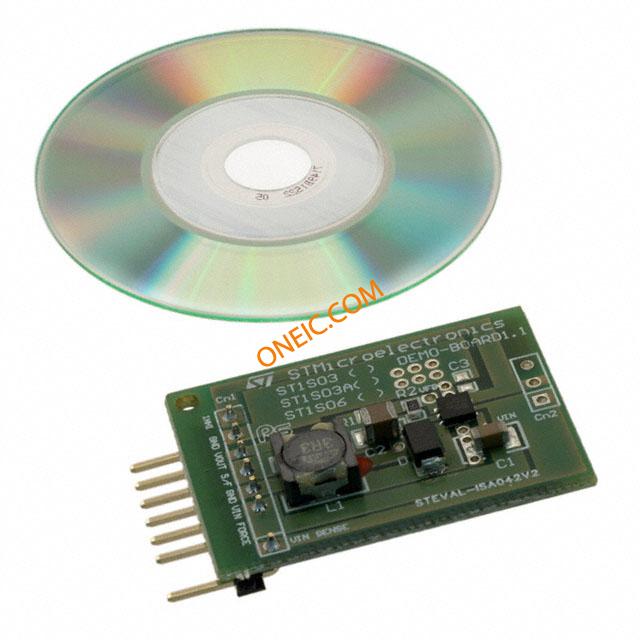

STEVAL-ISA042V2
| 制造商 | |
| 描述 | Demonstration Boards For Step-Down DC-DC Converter Based On ST1S03 Power Management IC Development Tools 1.5A/3.3V STEP-DOWN DC-DC CONV ST1S03 BOARD EVAL BASED ON ST1S03 |
| 分类 |
商业参数
| 产品 | Demonstration Boards | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 3 V to 16 V | 输出电流 | 1.5 A |
| 稳压器拓扑 | Buck | 开关频率 | 1.5MHz |
| 最小输入电压 | 3.3V | ||
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 功能 | The STEVAL-ISA042V2 demonstration board is a step-down DC-DC converter optimized for powering the low-voltage digital core in HDD applications | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | ST1S03 |
| 使用的IC/零件 | ST1S03 | ||
文档与媒体
相关型号
ST1S03PUR
stmicroelectronics
Conv DC-DC Single Step Down 3V to 16V 6-Pin DFN T/R DC-DC 16V 1.5A D DFN6D SMD IC REG BUCK 1.5A DFN6 Voltage Regulators - Switching Regulators 3-16V STEP DOWN REGULATOR,VOLTAGE,STEP-DOWN,1.5A,DFN6PKG STMicroelectronics 开关稳压器, 可调输出, 1.8 MHz, 6针 DFN封装 Switching Voltage Regulators 3-16V STEP DOWN
ST1S03PMR
STMicroelectronics
DC/DC Switching Regulators 3 to 16V Step-Down IC REG BUCK 1.5A 6DFN
ST1S03APUR
stmicroelectronics
Conv DC-DC Single Step Down 2.6V to 5.5V 6-Pin DFN T/R DC-DC 7V 1.5A D DFN6D SMD IC REG BUCK 1.5A DFN6D Voltage Regulators - Switching Regulators 1.5A 1.5 MHz Adj
C3225X7R1C226M250AC
TDK Corporation
CAP CER 22UF 16V 20% X7R 1210 Multilayer Ceramic Capacitors MLCC - SMD/SMT 22UF 16V 20% Cap Ceramic 22uF 16V X7R 20% SMD 1210 125C Plastic T/R Cap Ceramic 22uF 16V X7R 20% SMD 1210 125°C Plastic T/R CAPACITOR CERAMIC, 22UF, 16V, X7R, 20%, 1210, FULL REEL CAPACITOR CERAMIC, 22UF, 16V, X7R, 20%, 1210 CAP, MLCC, X7R, 22UF, 16V, 1210 TDK C 系列 22μF ±20% X7R电介质 16 V 直流 多层陶瓷电容器 (MLCC) , 1210封装
C3216X7R1C475K160AB
TDK Corporation
CAP CER 4.7UF 16V 10% X7R 1206 TDK 4700nF ±10% 16V dc X7R Dielectric SMD Ceramic Multilayer Capacitor, C3216 Package Multilayer Ceramic Capacitors MLCC - SMD/SMT 4.7uF 10% 16Volts CAPACITOR CERAMIC, 4.7UF, 16V, X7R, 10%, 1206, FULL REEL CAPACITOR CERAMIC, 4.7UF, 16V, X7R, 10%, 1206 CAP, MLCC, X7R, 4.7UF, 16V, 1206 TDK C 系列 4.7μF ±10% X7R电介质 16 V 直流 多层陶瓷电容器 (MLCC) , 1206封装
