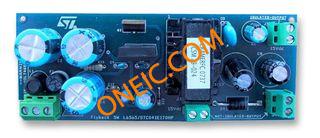

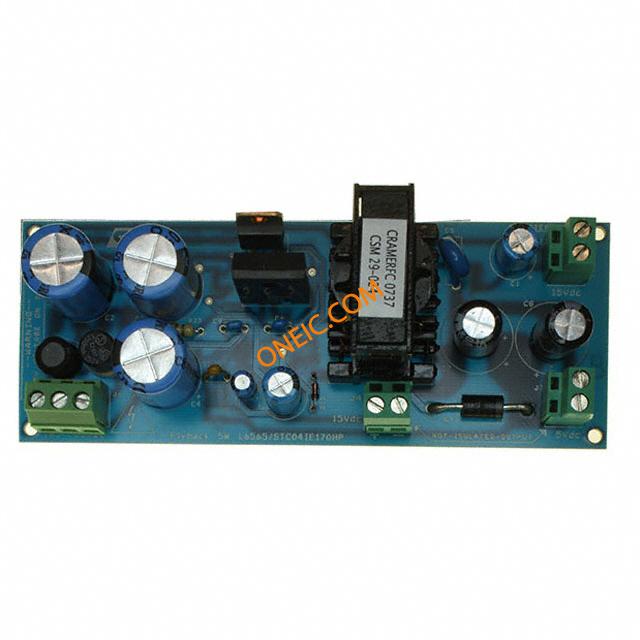

STEVAL-ISA036V1
| 制造商 | |
| 描述 | Demonstration Board For Metering And Motor Control Based On STC04IE170HP Power Management IC Development Tools 5W Wide Range SMPS for Metering BOARD EVAL BASED ON STC04IE170 |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | ||
电气参数
| 额定输出功率 | 5W | 额定电压 | 200 V to 1200 V |
| 输出电流 | 600mA, 66mA, 66mA | 稳压器拓扑 | Flyback |
| 最小输入电压 | 5V, 15V, 15V | ||
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 主要用途 | AC/DC, Primary Side | 输出及类型 | 1, Isolated; 2, Non-Isolated |
| 工具类型/特性 | STC04IE170HP | 使用的IC/零件 | L6565, STC04IE170HP |
环境参数
| 机械寿命 | Obsolete | ||
文档与媒体
相关型号
STTH112U
stmicroelectronics
Diode Switching 1.2KV 1A 2-Pin SMB T/R TURBOSWITCH-DIODE 1200V 1A SMB DIODE ULTRA FAST 1200V 1A SMB STTH112U, Fast Rectifier Diode, Switching 1A 1200V 75ns, 2-Pin, SMB DIODE, FAST, 1A, 1200V, SMD, SMB DIODE,ULTRAFAST1200V1ASMBPKG Rectifier diode SMB 1200 V, STTH112U, ST STMicroelectronics 开关 整流器二极管, 1A 1200V, 2针 DO-214AA封装 Rectifiers 1.0 Amp 1200 Volt
STPS1H100A
stmicroelectronics
Diode Schottky 100V 1A 2-Pin SMA T/R SCHOTTKY-DIODE 100V 1A SMA DIODE SCHOTTKY 100V 1A SMA STPS1H100A, Schottky Diode, 1A 100V, 2-Pin, SMA Schottky Diodes & Rectifiers 1.0 Amp 100 Volt DIODE, SCHOTTKY, 1A, 100V, SMA DIODE,SCHOTTKY,100V1ASMAPKG Schottky diode 1 A 100 V SMA, STPS1H100A, ST STMicroelectronics 肖特基 二极管, 1A 100V, 2针 DO-214AC封装
LL4148
Taiwan Semiconductor
Diodes - General Purpose, Power, Switching 1500W 20V 5% UNI TRANSZORB-TVS

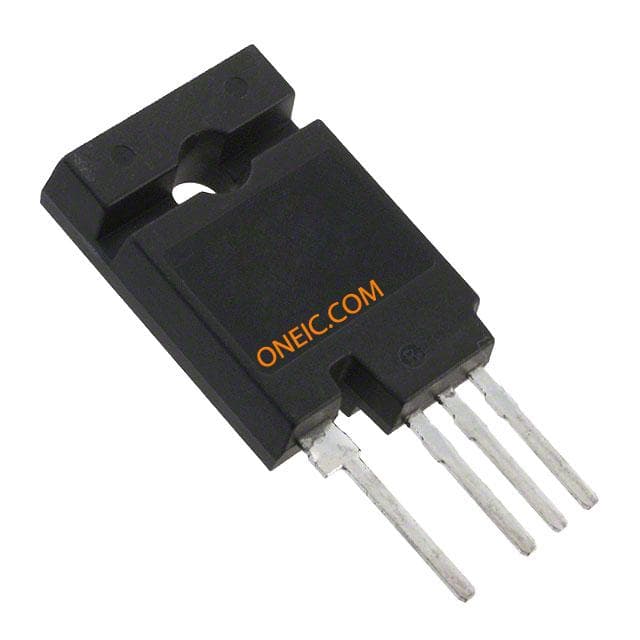

STC04IE170HP
