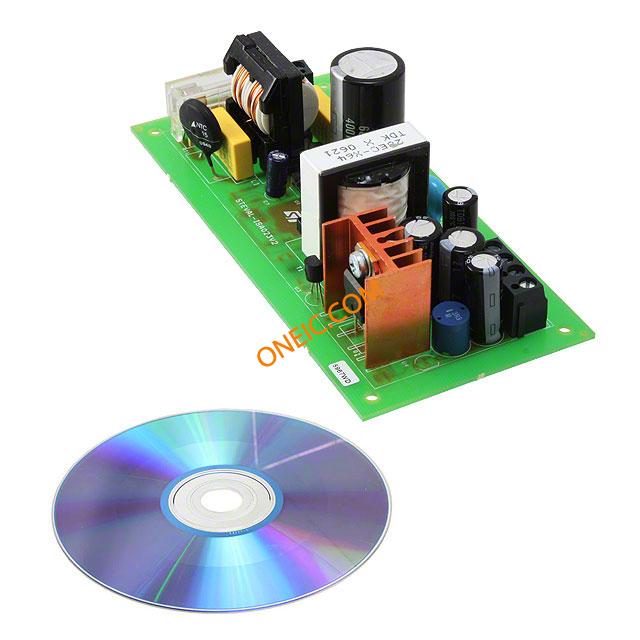

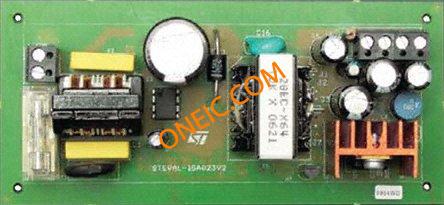

STEVAL-ISA023V2
| 制造商 | STMicroelectronics N.V. |
| 描述 | Flyback AC-DC Converter Evaluation Board Based On The Viper53E With 24 W Negative Output Power Management IC Development Tools BOARD & REF DESIGN EVAL BOARD 24W NEG OUT VIPER53E STEVAL-ISA023V2, Development Kit, Power Management, Evaluation Board for VIPer53-E FLYBACKAC-DCCONVERTER Flyback AC-DC Converter Evaluation Board based on the VIPer53-E |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-5866 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | ||
电气参数
| 额定输出功率 | 24W | 额定电压 | 90 V to 265 V |
| 输出电流 | 3A, 800mA | 供电电压 | -5V, -12V |
| 稳压器拓扑 | Flyback | 最大额定电流 | 3A, 800mA |
| 开关频率 | 60kHz | 最小输入电压 | -5V, -12V |
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
| 供应商器件封装 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 技术 | Power Management | 应用领域 | AC/DC, Primary Side |
| 套件内容 | Evaluation Board for VIPer53-E | 主要用途 | AC/DC, Primary Side |
| 卡标准 | Development Kit | 输出及类型 | 2, Isolated |
| 工具类型/特性 | VIPer53-E | 使用的IC/零件 | VIPer53 |
