点击放大查看

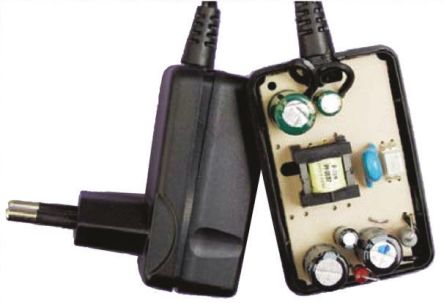

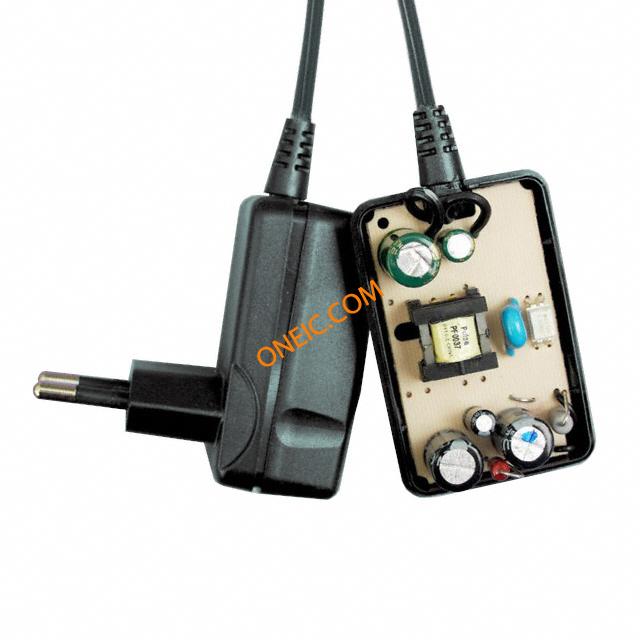

STEVAL-ISA014V1
| 制造商 | |
| 描述 | Evaluation Kit For AC/DC Power Supply Single Out 6V 0.6A 3.6W Power Management IC Development Tools VIPer12A Travel Adaptor 3.6W Output EVAL BOARD TRAVEL ADAPTOR 3.6W STEVAL-ISA014V1, Adapter, Power Management, VIPer12A Travel Adapter 3.6WSMPSEVALBOARD STMicroelectronics 旅行适配器 电源管理 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-5084 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定输出功率 | 3.6W | 额定电压 | 86 V to 264 V |
| 输出电流 | 600mA | 稳压器拓扑 | Flyback |
| 开关频率 | 60kHz | 最小输入电压 | 6V |
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 名称 | 旅行适配器 | 类型 | Development Kit |
| 内容 | Board | 技术 | Power Management |
| 套件内容 | VIPer12A Travel Adapter | 主要用途 | AC/DC, Primary Side |
| 卡标准 | Adapter | 输出及类型 | 1, Isolated |
| 工具类型/特性 | VIPer12A | 使用的IC/零件 | VIPer12A |
文档与媒体
相关型号

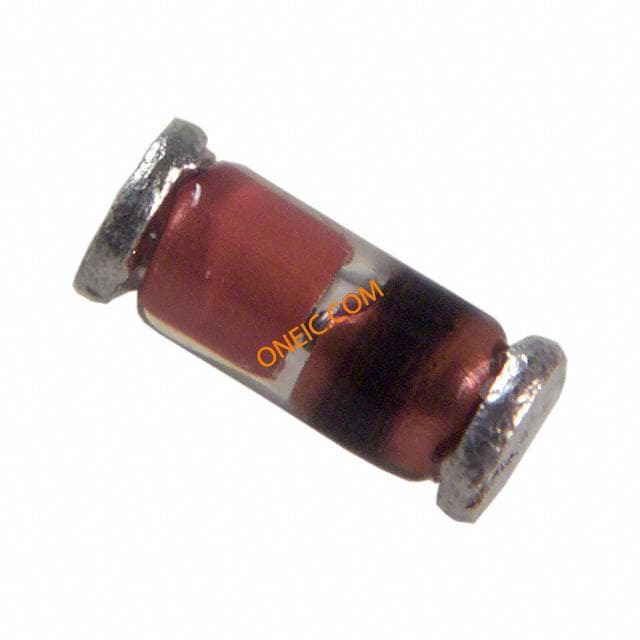

BAV103-GS08
