点击放大查看

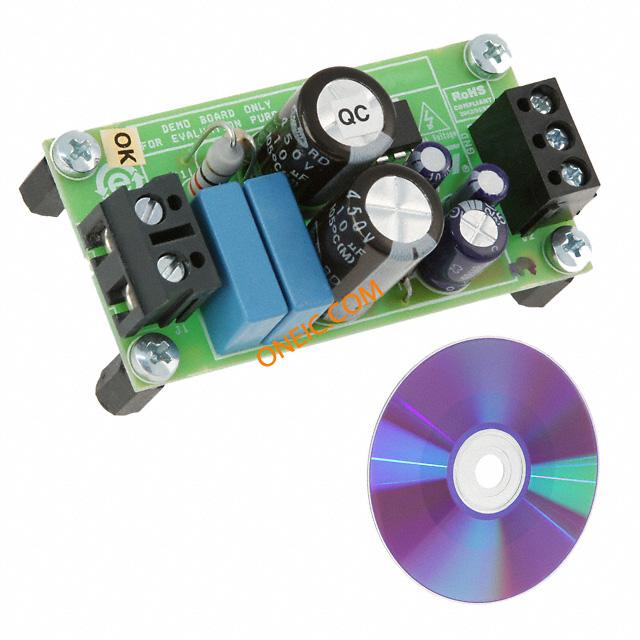

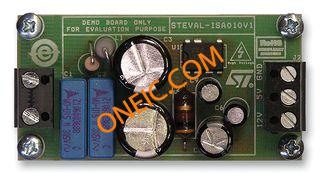

STEVAL-ISA010V1
| 制造商 | |
| 描述 | Ultra Wide Range Dual Output Back Converter Demonstration Board Based On The Viper16 Power Management IC Development Tools Viper16L Wide Range Converter Board BOARD EVAL BASED ON VIPER16 VIPER16, BUCK CONV, SMPS, DEV BOARD |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84733020 |
电气参数
| 额定输出功率 | 2.55W | 额定电压 | 85 VAC to 500 VAC |
| 输出电流 | 150mA, 100mA | 元件数量 | :Viper16 |
| 稳压器拓扑 | Buck | 开关频率 | 60kHz |
| 最小输入电压 | 12V, 5V | ||
机械参数
| 重量 | 0.002 | 包装方式 | Bulk |
| 电路板厚度 | Fully Populated | 尺寸/外形 | 27 mm x 45 mm |
产品信息
| 类型 | Development Kit | 已删除 | Compliant |
| 内容 | Board | 产品特性 | :Short-Circuit Protection, Standby Voltage of 96mW at 230V Acand Input Voltage of 85 to 500V AC |
| 套件类型 | :Power Management | 套件内容 | :Demo Board VIPER16 |
| 主要用途 | AC/DC, Primary Side | 输出及类型 | 2, Non-Isolated |
| 工具类型/特性 | VIPER16 | 使用的IC/零件 | VIPer16 |
| 芯片组制造商 | :STMicroelectronics | 应用细节 | :SMPS |
