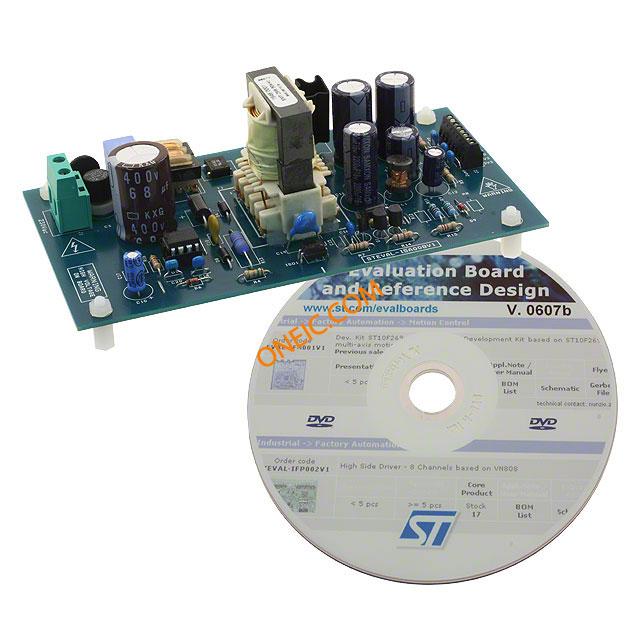

STEVAL-ISA008V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | Low Cost Wide Range Power Supply For LCD Or TV, 28 W Output Demonstration Board Based On The Viper53-E Power Management IC Development Tools PWR SUPPLY FOR LCD/TV 28W OUTPUT BOARD EVAL FOR VIPER53 28W |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定输出功率 | 28W | 输出电流 | 2A, 1A, 200mA |
| 供电电压 | 12V, 3.3V, 7V | 稳压器拓扑 | Flyback |
| 最大额定电流 | 2A, 1A, 200mA | 开关频率 | 40kHz |
| 最小输入电压 | 12V, 3.3V, 7V | ||
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
| 供应商器件封装 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 系列 | VIPER™ |
| 内容 | Board | 应用领域 | AC/DC, Primary Side |
| 主要用途 | AC/DC, Primary Side | 输出及类型 | 3, Isolated |
| 使用的IC/零件 | VIPer53 | ||
环境参数
| 机械寿命 | NRND: Not recommended for new designs. | ||
相关型号
VIPER53SP
stmicroelectronics
Power Switch 1.6A 10-Pin(10+2Tab) PowerSO Tube AC/DC Switching Converters 620 Volt 50W SMPS IC OFFLINE SWIT PWM CM POWERSO10
VIPER53EDIP-E
STMicroelectronics
AC/DC Switching Converters Primary Switch OFF-line AC to DC Switching Converter Off-Line Switcher 93kHz to 107kHz 8-Pin PDIP SMPS DIP-8 THT IC OFFLINE SWIT PWM CM OTP 8DIP AC/DC Converters Primary Switch OFF-line Off-Line Primary Switch 8-Pin PDIP Tube 交直流转换器, 150μA, -0.3 → 620 V, 8引脚 PDIP封装
VIPER53SP13TR
STMicroelectronics
AC/DC Switching Converters OFF LINE PRIMARY SWT IC OFFLINE SWIT PWM CM POWERSO10
VIPER53SP-E
stmicroelectronics
Power Switch 1.6A 10-Pin(10+2Tab) PowerSO Tube AC/DC Switching Converters 620 VOLT 50W SMPS SMPS PowerSO-10 SMD IC OFFLINE SWIT PWM CM POWERSO10 AC/DC Converters 620 VOLT 50W SMPS PWM Regulator IC PowerSO-10, VIPER53SP-E, ST 交直流转换器, 150μA, -0.3 → 620 V, 10引脚 PowerSO封装
VIPER53DIP-E
stmicroelectronics
Power Switch 1.6A 8-Pin PDIP Tube AC/DC Switching Converters 620 Volt 50W SMPS SMPS DIP-8 THT IC OFFLINE SWIT PWM CM OTP 8DIP VIPER53DIP-E, PWM Current Mode Controller, Flyback, 300kHz 19V, 8-Pin DIP AC/DC Converters 620 Volt 50W SMPS IC, SMPS 50W SMART, DIP8 SWITCHPRIMARYVIPER,8-DIPPKG Driver; SMPS controller; 2A; 0÷620V; Channels:1; DIP8 PWM Regulator IC DIL-8, VIPER53DIP-E, ST , PWM 电流模式控制器, 反激式, 300 kHz, 8针 PDIP封装
VIPER53ESPTR-E
stmicroelectronics
Off Line Primary Switch 10-Pin(10+2Tab) PowerSO T/R AC/DC Switching Converters Primary Switch AC to DC Switching Converter Off-Line Switcher 93kHz to 107kHz 10-Pin(10+2Tab) PowerSO SMART 50 W SMPS IC OFFLINE SWIT PWM POWERSO10 AC/DC Converters Primary Switch
VIPER53SPTR-E
stmicroelectronics
Power Switch 1.6A 10-Pin(10+2Tab) PowerSO T/R AC/DC Switching Converters OFF line Primary Swtch SMPS PowerSO-10 SMD IC OFFLINE SWIT PWM CM POWERSO10 AC/DC Converters OFF line Primary Swtch
VIPER53ESP-E
stmicroelectronics
Off Line Primary Switch 10-Pin(10+2Tab) PowerSO Tube AC/DC Switching Converters OFF line Primary Swtch AC to DC Switching Converter Off-Line Switcher 93kHz to 107kHz 10-Pin(10+2Tab) PowerSO SMART 50 W SMPS IC OFFLINE SWIT PWM POWERSO10 AC/DC Converters OFF line Primary Swtch
VIPER53DIP
STMicroelectronics
IC OFFLINE SWIT PWM CM OTP 8DIP
