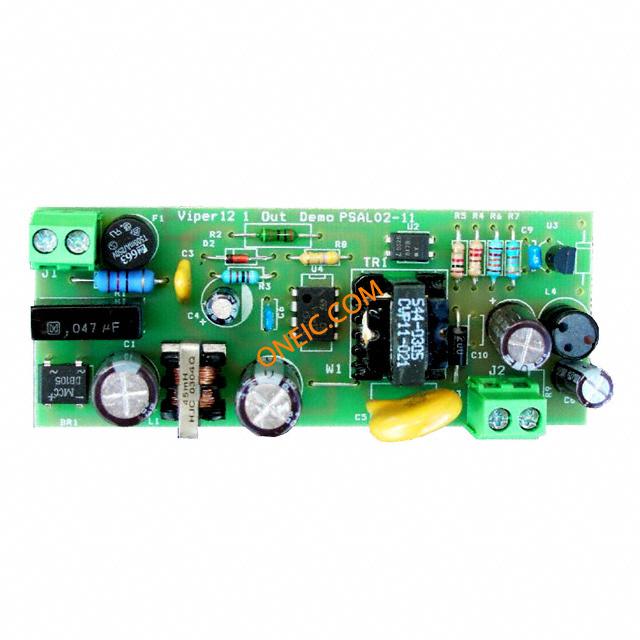

STEVAL-ISA002V1
| 制造商 | |
| 描述 | Evaluation Kit For AC/DC Power Supply Single Out 12V 0.5A 6W Power Management IC Development Tools Reference Board VIPer12A Single BOARD 6W SINGLE OUTPUT VIPER12A |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-4930 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
电气参数
| 额定输出功率 | 6W | 额定电压 | 85 V to 264 V |
| 输出电流 | 500mA | 稳压器拓扑 | Flyback |
| 开关频率 | 60kHz | 最小输入电压 | 12V |
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 主要用途 | AC/DC, Primary Side | 输出及类型 | 1, Isolated |
| 工具类型/特性 | VIPer12A | 使用的IC/零件 | VIPer12A |
环境参数
| 机械寿命 | Obsolete | ||
文档与媒体
相关型号
VIPER12ADIP
STMicroelectronics
AC/DC Switching Converters 700V 0.36A SMPS IC OFFLINE SWIT PWM SMPS CM 8DIP Primary Switch 8-Pin PDIP Tube
VIPER12AS
STMicroelectronics
AC/DC Switching Converters 700V 0.36A SMPS DISC-BY-STM-12/04 IC OFFLINE SWIT PWM SMPS 8SOIC Primary Switch 8-Pin SO Tube
VIPER12ASTR-E
stmicroelectronics
Primary Switch 8-Pin SO N T/R AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 8-Pin SO N SMPS SO-8 SMD IC OFFLINE SWIT PWM SMPS 8SOIC VIPER12ASTR-E, PWM Current Mode Controller, 60kHz 50V, 8-Pin SO-8 AC/DC Converters Low Power OFF-Line SMPS Primary Switch PWM, SWITCHER, 38V, 60KHZ, 0.4A, 8SO PWM 电流模式控制器, 60kHz, 8针 SOIC封装
VIPER12AS-E
stmicroelectronics
Primary Switch 8-Pin SO N Tube AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 8-Pin SO N SMPS SO-8 SMD IC OFFLINE SWIT PWM SMPS 8SOIC VIPER12AS-E, PWM Current Mode Controller, 8-Pin SOIC AC/DC Converters 700V 0.36A SMPS IC, SMPS REG, SMD, SOIC8 Driver; SMPS controller; 100uA; 0÷730V; Channels:1; SO8 PWM Regulator IC SO-8, VIPER12AS-E, ST PWM 电流模式控制器, 8针 SOIC封装
VIPER12ADIP-E
stmicroelectronics
Primary Switch 8-Pin PDIP Tube AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 8-Pin PDIP SMPS DIP-8 THT IC OFFLINE SWIT PWM SMPS CM 8DIP VIPER12ADIP-E, PWM Current Mode Controller, 8-Pin PDIP AC/DC Converters Low Power OFF-Line SMPS Primary IC, SMPS SWITCHER, DIP-8 IC, OFF LINE SWITCHER, DIP-8 SMPSPRIMARYVIPERDC-DC,8PINDIP Power Supply IC DIP-8, VIPER12ADIP-E, ST PWM 电流模式控制器, 8针 PDIP封装
