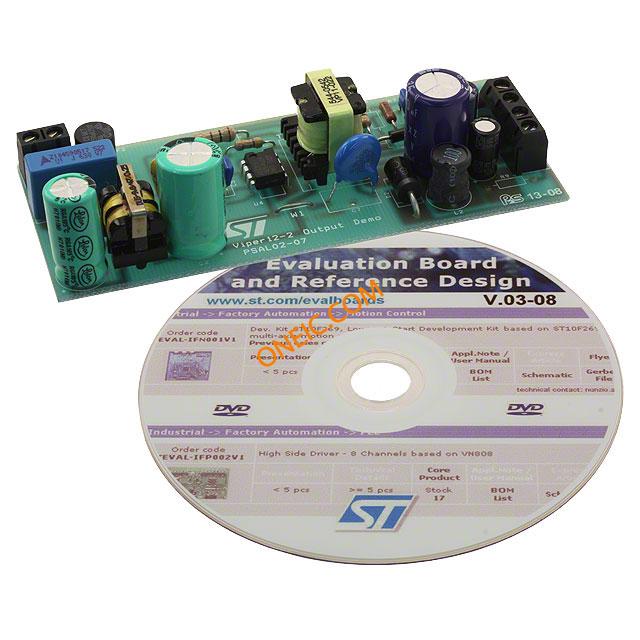

STEVAL-ISA001V1
| 制造商 | |
| 描述 | Evaluation Board For AC/DC Power Supply Dual Out 5/12V 0.5/0.25A 6W Power Management IC Development Tools VIPer12A Dual Output Reference Board BOARD 6W DUAL OUTPUT VIPER12A |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定输出功率 | 6W | 额定电压 | 85 V to 264 V |
| 输出电流 | 600mA, 250mA | 供电电压 | 5V, 12V |
| 最大额定电流 | 600mA, 250mA | 开关频率 | 60kHz |
| 最小输入电压 | 5V, 12V | ||
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
| 供应商器件封装 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 系列 | VIPER™ |
| 内容 | Board | 应用领域 | AC/DC, Primary Side |
| 主要用途 | AC/DC, Primary Side | 输出及类型 | 2, Isolated |
| 工具类型/特性 | VIPer12A | 使用的IC/零件 | VIPer12A |
