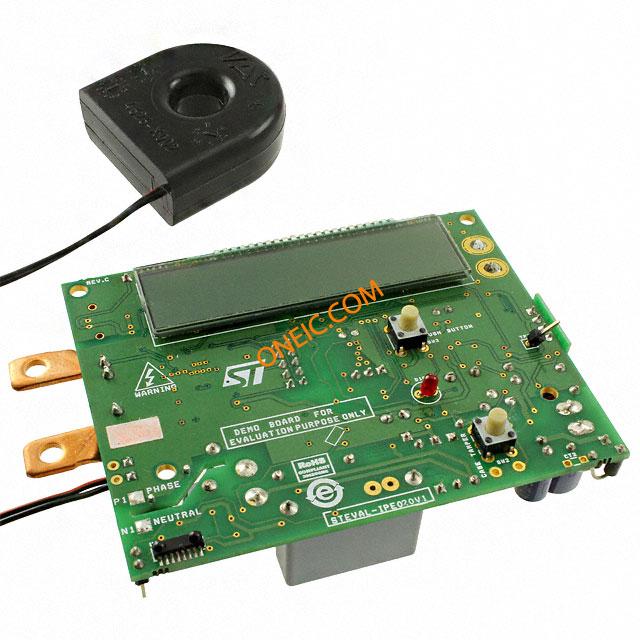

STEVAL-IPE020V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | Power Management IC Development Tools Single phase Meter w/Dual EEProm BOARD DEMO ENERGY METER STPM10 |
| 分类 |
商业参数
| 产品 | Demonstration Boards | 其他名称 | 497-14514 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 接口 | IrDA | 额定电压 | 240 V |
| 输出电流 | 10 A | ||
机械参数
| 包装方式 | Bulk | ||
产品信息
| 类型 | Energy Meters | 内容 | Board |
| 嵌入式 | Yes, MCU, 8-Bit | 功能 | For demonstration of a single phase energy meter with dual EEPROM data logging |
| 主要用途 | Power Management, Energy/Power Meter | 工具类型/特性 | STPM10, STM8L152 |
| 使用的IC/零件 | M24LR64, STM8L152, STPM10 | 次要特性 | LCD On-Board |
| 适用产品/相关产品 | STPM10, STM8L152 | ||
文档与媒体
相关型号
M24LR64-RMN6T/2
stmicroelectronics
EEPROM Serial-I2C 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin SO N T/R TAG IC R/W 13,56MHz I2C 64Kbit 13.56MHZ 64KBIT EEPROM SO8N RFID Transponders Dual Interface 64k EEPROM ISO15693-I2C EEPROM, 64K, DUAL INTERFACE, 8SOIC
STPM10BTR
stmicroelectronics
Energy Measurement 20-Pin TSSOP T/R METERING IC TSSOP20 SMD IC ENERGY METER 1 PHASE 20TSSOP Current & Power Monitors & Regulators Programmable single phase energy meter
M24LR64-RDW6T/2
stmicroelectronics
EEPROM Serial-I2C 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin TSSOP T/R TAG IC R/W 13,56MHz I2C 64Kbit 13.56MHZ 64KBIT EEPROM 8 TSSOP RFID Transponders Dual Interface 64k EEPROM ISO15693-I2C EEPROM, 64K, DUAL INTERFACE, 8TSSOP STMicroelectronics EEPROM 存储器, 64kbit, 8192 x, 8bit, 串行 - I2C接口, 900ns, 1.8 → 5.5 V, 8针 TSSOP封装

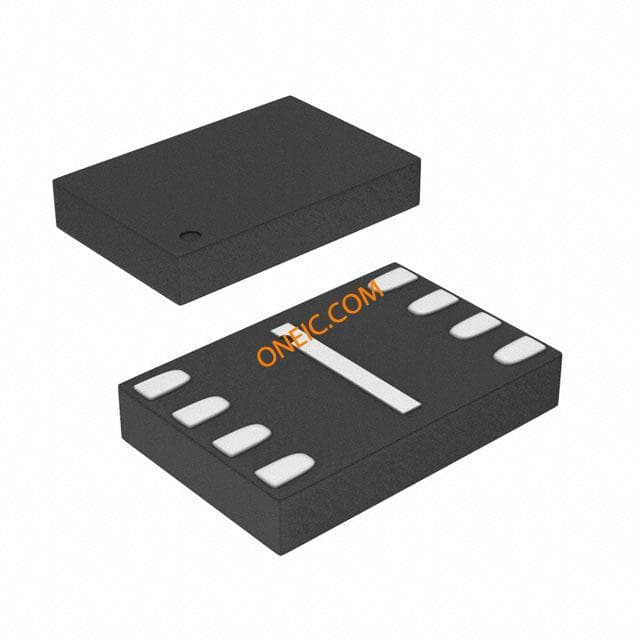

M24LR64-RMB6T/2
stmicroelectronics
EEPROM Serial-I2C 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin MLP EP T/R TAG IC R/W 13,56MHz I2C 64kbit 13.56MHZ 64KBIT EEPROM UFDFPN8
