STEVAL-IPB001V1
| 制造商 | |
| 描述 | Evaluation Board For Universal Input Voltage Power Supply Power Management IC Development Tools 2W 3-Phase Breaker UC3845 STC04IE170 EVAL BOARD 2W 3PH SMPS BRKR ESBT |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定输出功率 | 2W | 额定电压 | 150 V to 1200 V |
| 输出电流 | 83mA | 供电电压 | 24V |
| 稳压器拓扑 | Flyback | 最大额定电流 | 83mA |
| 开关频率 | 50kHz | 最小输入电压 | 24V |
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
| 供应商器件封装 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 应用领域 | AC/DC, Primary Side | 主要用途 | AC/DC, Primary Side |
| 输出及类型 | 1, Isolated | 工具类型/特性 | UC3845B, STC04IE170 |
| 使用的IC/零件 | UC3845B | ||
文档与媒体
相关型号
UC3845BN
stmicroelectronics
Current Mode PWM Controller 1A 8-Pin Mini-PDIP Tube SMPS 30V 1A Minidip THT IC REG CTRLR BST FLYBK ISO 8-DIP UC3845BN, PWM Current Mode Controller, 1A Boost, Flyback, 500kHz 8-Pin MiniPDIP Switching Controllers 0.5mA Current Mode Current Mode PWM Controller 1A 8-Pin Mini PDIP IC, PWM CONTROLLER, 3845, DIP8 IC,UC3845BN , PWM 电流模式控制器, 1 A, 升压、反激式, 500 kHz, 8针 PDIP封装 SMPS 30V 1A DIP-8 THT
UC3845BD1
stmicroelectronics
Current Mode PWM Controller 1A 8-Pin SO N SMPS SO-8 SMD IC REG CTRLR BST FLYBK ISO SO-8 UC3845BD1, PWM Current Mode Controller, 1A Boost, Flyback, 500kHz 8-Pin SOIC Switching Controllers PWM CONTROLLER , PWM 电流模式控制器, 1 A, 升压、反激式, 500 kHz, 8针 SOIC封装

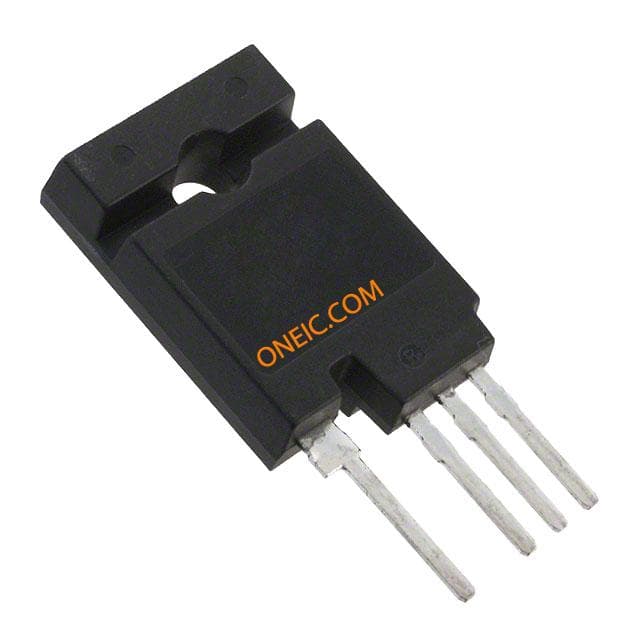

STC04IE170HP
