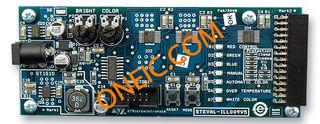

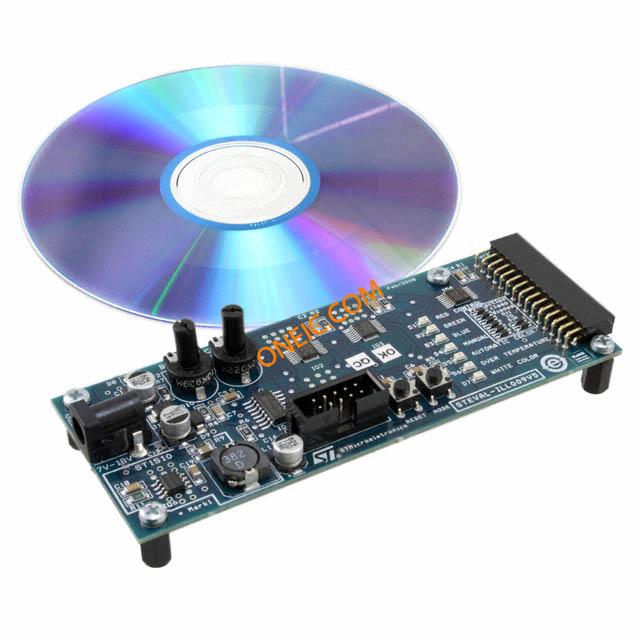

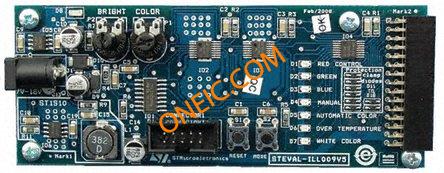

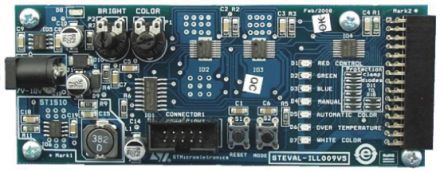

STEVAL-ILL009V5

制造商	STMicroelectronics N.V.
描述	New RGB Color Demonstration Board Based On The Stp04Cm05 And ST1S10 LED Lighting Development Tools NEW RGB COLOR CNTRL BRD STP04CM05 ST1S10 BOARD EVAL STP04CM05/ST1S10 STEVAL-ILL009V5, Development Kit, LED, Demonstration Board STP04CM05 / ST1S10, LED DRIVER DEV BOARD STP04CM05&ST1S10RGBColourDemoBoard STMicroelectronics 演示板 LED 处理器和微控制器开发套件
分类	嵌入式系统与开发工具嵌入式MCU与DSP评估板MCU评估板

商业参数

产品	Demonstration Boards	其他名称	497-8407
产品类别	LED Lighting Development Tools	标准包装数量	Boxed

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	84733020

电气参数

核心类型	STP04CM05	供电电压	7 V to 18 V
元件数量	:STP04CM05, STP08CP05, ST1S10

机械参数

重量

0.002

包装方式

Bulk

产品信息

类型	Development Kit	内容	Board
嵌入式	Yes, MCU, 8-Bit	产品特性	:-
套件类型	:Display	技术	LED
套件内容	Demonstration Board	主要用途	Lighting, RGB LED Controller
卡标准	Development Kit	主要特性	8 Outputs at 80 ~ 400mA, 7 Indicator LEDs, 7 ~ 18 V In
使用的IC/零件	STP04CM05	芯片组制造商	:STMicroelectronics
次要特性	Temperature Protection	应用细节	:LCD Panels Backlight
适用产品/相关产品	High Brightness High Power RGB LEDs

文档与媒体

CD00215473.pdf

PF215455

ST1S10

STP08CP05

STP04CM05

1689980.pdf
