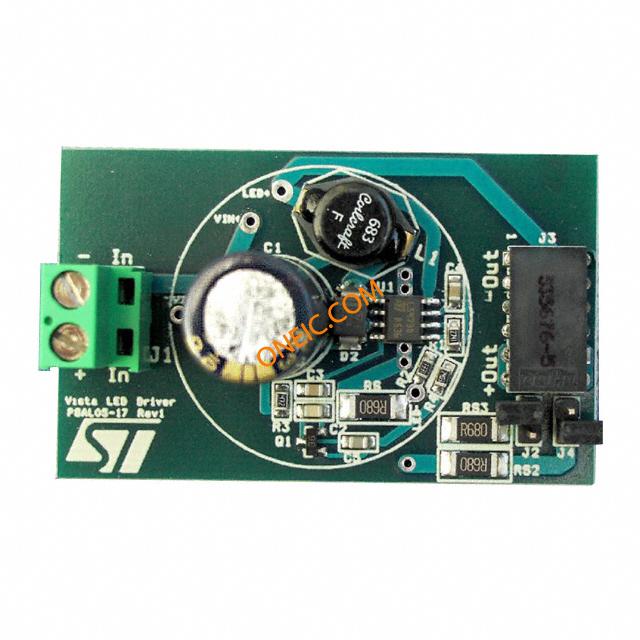

STEVAL-ILL007V1

制造商	STMicroelectronics N.V.
描述	Evaluation Kit For High Intensity LED Driver For MR16 Format Based On L5973D LED Lighting Development Tools HIGH INTENSITY LED DRIVER EVAL BOARD LED DRVR MR-16 FORMAT
分类	嵌入式系统与开发工具嵌入式开发工具评估与开发套件

对参数有疑问？问 AI 助手

商业参数

产品	Evaluation Boards	其他名称	497-5074
产品类别	LED Lighting Development Tools	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS

欧盟RoHS

Compliant

电气参数

核心类型	L5973D	供电电压	6 V to 24 V
最小输入电压	35V	输出电流/通道	350mA, 700mA, or 1.05A

机械参数

包装方式

Bulk

产品信息

类型	Development Kit	内容	Board
产品特性	Thermal Shutdown Protection	输出及类型	1, Non-Isolated
使用的IC/零件	L5973	适用产品/相关产品	MR-16

环境参数

机械寿命

Obsolete

文档与媒体

在线文档

STEVAL-ILL007V1: 1 to 3 LEDs @ 0.35, 0.7, or 1A

PDF 文档

STEVAL-ILL007V1 BOM

压缩文件

STEVAL-ILL007V1 Gerber Files

PDF 文档

CD00176889.pdf

PDF 文档

L5970D
