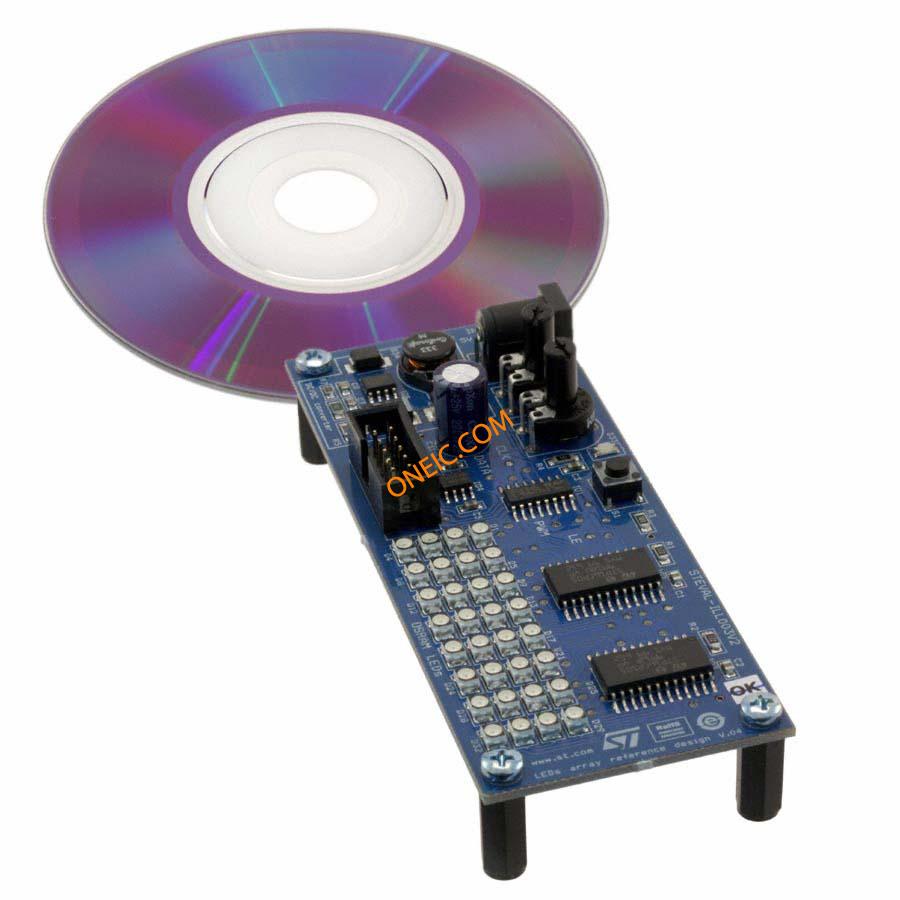

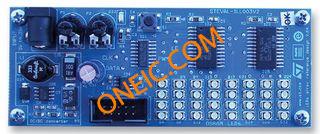

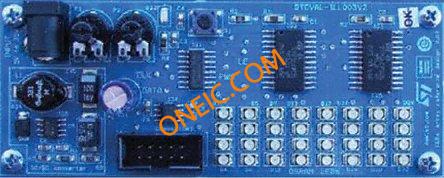

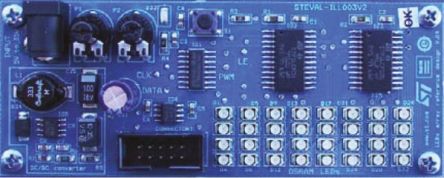

STEVAL-ILL003V2
| 制造商 | |
| 描述 | High Brightness 32LED Evaluation Board Without Diagnostic Based On The STP16CP05 LED Driver LED Lighting Development Tools HB LED W/OUT DIAGNOSTIC BOARD EVAL BASED ON STP16CP05 LED Driver Eval Board based on STP16CP05 STP16CP05, HB LED DRIVER, DEV BOARD LEDDRIVEREVALBOARD STMicroelectronics |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | LED Lighting Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84733020 |
电气参数
| 核心类型 | STP16CP05 | 输出电流 | 50 mA |
| 供电电压 | 5 V to 35 V | 元件数量 | :STP16CP05 |
| 最小输入电压 | 4V | 输出电流/通道 | 5 ~ 100 mA |
机械参数
| 重量 | 0.002 | 包装方式 | Bulk |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | Adjustable blinking speed; several blinking modes | 套件类型 | :Lighting |
| 技术 | LED Driver | 套件内容 | Evaluation Board |
| 输出及类型 | 32, Non-Isolated | 使用的IC/零件 | STP16CP05 |
| 芯片组制造商 | :STMicroelectronics | 应用细节 | LED Driver |
| 适用产品/相关产品 | High Brightness High Power LEDs | ||
