STDS75DS2F
| 制造商 | |
| 描述 | Temp Sensor Digital Serial (2-Wire, I2C) 8-Pin MSOP T/R IC TEMP SENSOR WTCHDG DGTL 8MSOP STDS75DS2F, 12bit Temperature Sensor ±3°C Serial-I2C 2.7 to 5.5V 8-Pin MSOP Board Mount Temperature Sensors Digital TEMP sensor thermal watchdog DigitalTemperatureSensor12-BitI2C STCN75 Series 5.5 V Digital Temperature Sensor and Thermal Watchdog - MSOP-8 STMicroelectronics , 12 位 数字温度传感器, ±3°C 串行 - I2C, 8针 MSOP封装 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 497-6318-2 | 产品类别 | Board Mount Temperature Sensors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 1000 |
| 标准封装名称 | MSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 精度 | ±3(Max) °C | 接口 | Serial (2-Wire, I2C) |
| 输出风扇 | No | 分辨率 | 12(Max) Bit |
| 输出类型 | Digital | 传感器类型 | Internal |
| 位数 | 12 bit | 额定电压 | 2.7 V |
| 输出电流 | 10 mA | 供电电压 | 2.7 to 5.5 V |
| 数字I/O线数 | 2-Wire, I2C, SMBus | 最小供电电压 | 5.5 V |
机械参数
| 宽度 | 3mm | 高度 | 0.85mm |
| 长度 | 3mm | 包装方式 | Tape and Reel |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | 8 |
| 封装形式 | 8MSOP | 冷却的封装 | MSOP |
| 包装数量 | MSOP | 尺寸/外形 | 3 x 3 x 0.85mm |
| 位数 | 8 | 供应商器件封装 | 8-MSOP |
产品信息
| 功能 | Temp Sensor | 关断 | Yes |
| 拓扑 | ADC (Sigma Delta), Comparator, Register Bank | 输出报警 | Yes |
| 配置 | Local | ||
环境参数
| 感应温度 | -55°C ~ 125°C | 工作温度 | -55°C ~ 125°C |
| 开关温度 | Programmable | ||
文档与媒体
PDF 文档
PDF 文档
相关型号

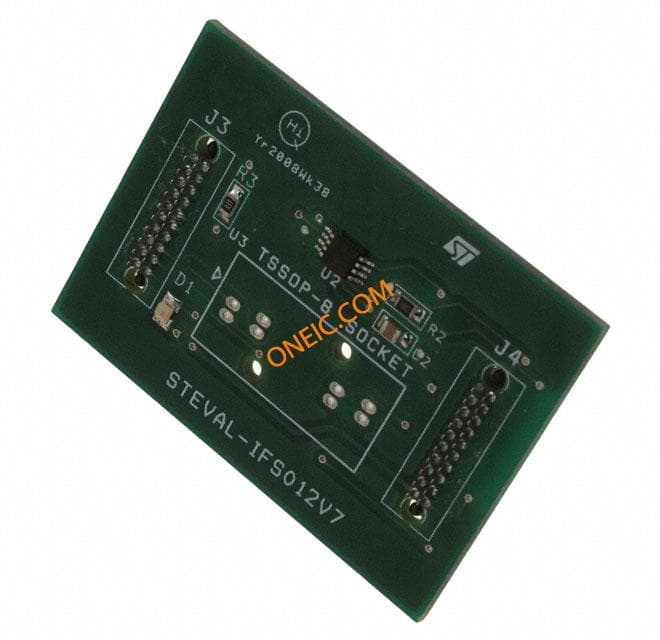

STEVAL-IFS012V7
