ST1S06PUR
| 制造商 | |
| 描述 | Conv DC-DC Single Step Down 2.7V to 6V 6-Pin DFN T/R DC-DC 16V 1.5A D DFN6D SMD IC REG BUCK SYNC 1.5A DFN6 Voltage Regulators - Switching Regulators STEP DOWN DC CONV 1.5MHZ STMicroelectronics 开关稳压器, 可调输出, 1.8 MHz, 6针 DFN封装 Switching Voltage Regulators STEP DOWN DC CONV 1.5MHZ DC-DC Buck 7V 1.5A DFN6D SMD |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 最小起订量 | 3000 | 产品 | Voltage Regulators |
| 单位包装 | 3000 | 其他名称 | 497-5802-2 |
| 产品类别 | Voltage Regulators - Switching Regulators | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 3000 | 标准封装名称 | DFN |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | ||
电气参数
| PWM类型 | Current Mode | 频率 | 1500000Hz |
| 效率 | 90(Typ) % | 输出类型 | Adjustable |
| 额定电压 | 0.5 to 5 V | 电源调整率 | 0.3 %Vo/Vi |
| 负载调整率 | 0.3 %Vo/Io | 输出电流 | 1.5(Min) A |
| 供电电压 | 2.7 to 6 V | 输出数量 | 1 |
| 输出电流1 | 1.5A | 稳压器拓扑 | Step Down |
| 开关稳压器 | Yes | 开关频率 | 1500(Typ) kHz |
| 同步整流 | Yes | 最小输入电压 | 16V |
| 直流输入电压（最小） | 2.7 V | ||
机械参数
| 包装方式 | Tape and Reel | 引脚样式 | No Lead |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 封装形式 | 6DFN | 冷却的封装 | DFN |
| 包装数量 | DFN | 位数 | 6 |
| 供应商器件封装 | 6-DFN (3x3) | ||
产品信息
| 类型 | Step Down | 匹配码 | ST1S06PUR |
| 标准交期 | 18 weeks | ||
环境参数
| 工作温度 | -30 to 125 °C | 最高温度限值 | 150°C |
文档与媒体
PDF 文档
PDF 文档
相关型号

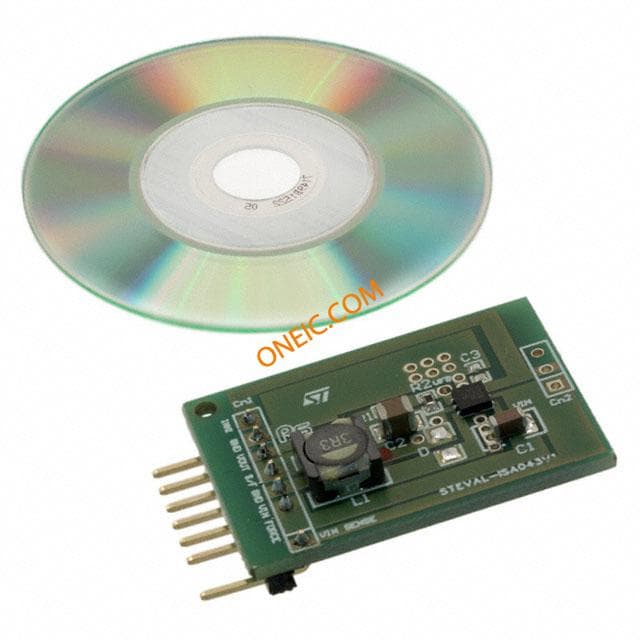

STEVAL-ISA043V1
stmicroelectronics
Evaluation Board For 1.5 A/1.2 V HighFrequency Synchronous Buck Converter Power Management IC Development Tools 1.5A / 1.2V HI FREQ SYNC BUCK CONVERTER BOARD EVAL BASED ON ST1S06 Development Kit, Power Management With Demonstration Board, Soft Starter Control Block 1.5A/1.2VBUCKCONVERTER STMicroelectronics
¥323.0000
详情
STEVAL-ISA043V2
stmicroelectronics
Evaluation Board For 1.5 A/3.3 V HighFrequency Synchronous Buck Converter Power Management IC Development Tools 1.5A / 3.3V HI FREQ SYNC BUCK CONVERTER BOARD EVAL BASED ON ST1S06 Development Kit, Power Management With Demonstration Board, Soft Starter Control Block 1.5A/3.3VBUCKCONVERTER STMicroelectronics
¥385.5260
详情
