SM15T30CA
| 制造商 | |
| 描述 | Diode TVS Single Bi-Dir 25.6V 1.5KW 2-Pin SMC T/R TRANSIL BI 1,5KW 30V SMC TVS DIODE 25.6VWM 53.5VC SMC TVS Diode Bi-Directional SM15T30CA 53.5V, 1500W, SMC 2-Pin TVS Diodes - Transient Voltage Suppressors 1500W 30V Bidirect DIODE, TVS, 30V, 1.5KW DIODE, TVS, 30V, 1.5KW, BI, SMC, RL SM15T30CA TVS diode, 25.6 V 1500 W SMC, SM15T30CA, ST STMicroelectronics 双向 TVS 二极管, 1500W, 53.5V, 2针 SMC封装 TVS-DIODE BI 1,5KW 30V SMC |
| 分类 |
商业参数
| 最小起订量 | 2500 | 单位包装 | 2500 |
| 其他名称 | 497-12773-1 | 产品类别 | TVS Diodes - Transient Voltage Suppressors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 2500 |
| 标准封装名称 | DO-214-AB | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85363010 |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | ||
电气参数
| 通道数 | 1 Channel | 容差 | 5% |
| 电容 | 2900 pF | TVS极性 | :Bidirectional |
| 浪涌电流 | 1 mA | 输出电流 | 1 mA |
| 供电电压 | 25.6V | 漏电流 | 0.001 uA |
| 元件数量 | 1 | 峰值脉冲功率 | 1500 W |
| 钳位电压 | 53.5 V | 电容 @ Vr, F | :2900pF |
| 跳闸电流 | 1 mA | 二极管配置 | :SMC |
| 击穿电压 | 28.5 V | 转折电压 | :28.5V |
| 隔离电压 | :25.6V | 触点电压（最大） | 25.6V |
| 电源线保护 | No | 最小输入电压 | 25.6 V |
| 双向通道数 | 1 | 最小供电电压 | 25.6 V |
| 最大功耗 | 1.5kW | 峰值脉冲电流（8/20µs） | 187 A |
| 反向漏电流 @ Vr | 0.2 uA | 峰值脉冲电流（10/1000µs） | 187A (8/20µs) |
| 反向关断电压（典型） | 25.6 V | ||
机械参数
| 长度 | :6.05mm | 重量 | 0.002 |
| 包装方式 | Tape and Reel | 引脚样式 | J-Lead |
| 安装类型 | Surface Mount | 引脚数 | :2 |
| 封装形式 | 2SMC | 冷却的封装 | SMC |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | SMC |
| 尺寸/外形 | 8.15 mm W x 7.15 mm L x 2.45 mm H | 端接样式 | SMD/SMT |
| 位数 | 2 | 供应商器件封装 | SMC |
产品信息
| 类型 | Zener | 系列 | SM15T |
| 极性 | Bidirectional | 匹配码 | SM15T30CA(BER) |
| 二极管类型 | :Bidirectional TVS | 应用 | General Purpose |
| 配置 | Single | 端口方向 | Bi-Directional |
| 标准交期 | 16 weeks | 应用细节 | BIDIRECTIO |
环境参数
| 工作温度 | -55 to 150 °C | 结工作温度 | -55 to 150 |
文档与媒体
相关型号

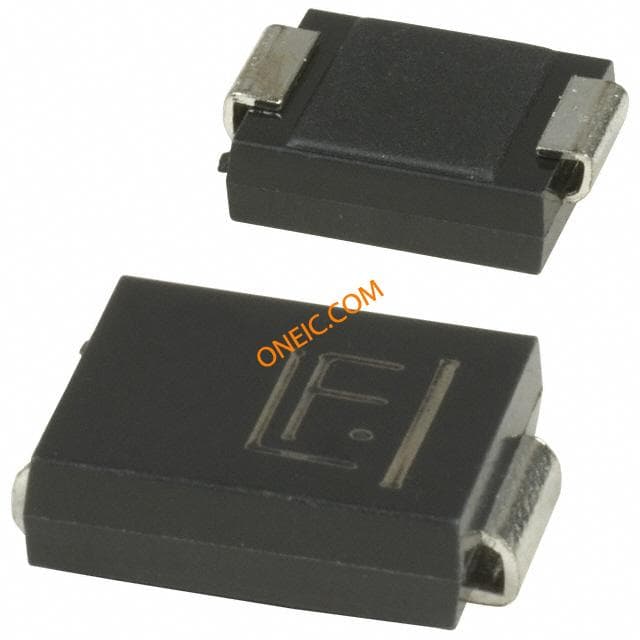

SMCJ30CA
bourns
Diode TVS Single Bi-Dir 30V 1.5KW 2-Pin DO-214AB TVS DIODE 30VWM SMD TVS Diodes - Transient Voltage Suppressors 30volts 5uA 31 Amps Bi-Dir DIODE, TVS, 30V, 1500W, SMC

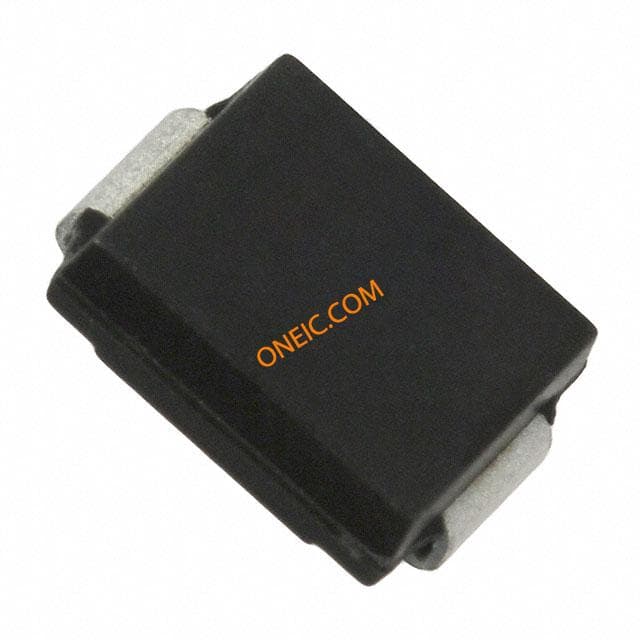

SMCJ30CA
Littelfuse
TVS Diodes - Transient Voltage Suppressors 30Vr 1500W 31A 5% BiDirectional Diode TVS Single Bi-Dir 30V 1.5KW 2-Pin DO-214AB T/R TRANSIL BI 1,5KW 36V SMC TVS DIODE 30VWM 48.4VC SMC TVS Diode Bi-Directional SMCJ30CA 48.4V, 1500W, DO-214AB 2-Pin DIODE, TVS, 30V, 1.5KW, BI, 5%, SMC Diode: transil; 1.5kW; 30V; 31A; bidirectional; DO214AB Littelfuse 双向 TVS 二极管, 1500W, 48.4V, 2针 DO-214AB封装

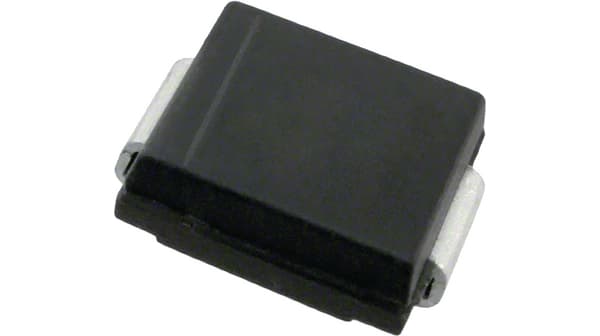

SMCJ30CA
