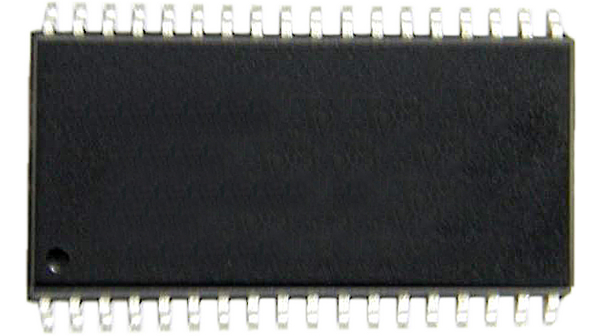

L6207PD
| 制造商 | STMicroelectronics N.V. |
| 描述 | DMOS Full Bridge PWM Motor Driver 48V 36-Pin PowerSO Tube 2xH-Br 2.8A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6207PD, Full Bridge Motor Driver, Full Bridge PWM, 8 to 52V, 36-Pin PowerSO Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge MOTOR DRIVER, DUAL, DMOS, 5.6A, 36PWRSO IC,L6207PD Driver; full bridge; 2.8A; Channels:2; SO36 Bridge Driver IC PowerSO-36, L6207PD, ST STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 2.8A, 8 → 52 V |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 最小起订量 | 31 | 单位包装 | 31 |
| 产品类别 | Motor / Motion / Ignition Controllers & Drivers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 31 | 标准封装名称 | PowerSO |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | ||
电气参数
| 接口 | Parallel | 最大电压 | 70V |
| 负载电压 | 8 V ~ 52 V | 额定电压 | 8 V |
| 输出电流 | 2.8A | 供电电压 | 48 V |
| 输出数量 | :2 | 输出电流1 | 0.5A |
| 通道数量 | 2 | 最大额定电流 | 10 mA |
| 最小输入电压 | 8V | 电源电压（最大） | 6 V |
| 最小供电电压 | 52 V | 导通电阻（最大） | 0.3mOhm |
| 平均整流电流 Io | 10 mA | ||
机械参数
| 宽度 | 11.1mm | 高度 | 3.3mm |
| 长度 | 16mm | 重量 | 0.000204 |
| 包装方式 | Tube | 封装体颜色 | :PowerSO |
| 电机类型 | :Full Bridge | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :36 |
| 封装形式 | 36PowerSO | 冷却的封装 | PowerSO |
| 材料表面处理 | :MSL 3 - 168 hours | 包装数量 | PowerSO |
| 尺寸/外形 | 16 x 11.1 x 3.3mm | 位数 | 36 |
| 供应商器件封装 | PowerSO-36 | ||
产品信息
| SPG | 31 | 类型 | DMOS Full Bridge PWM Motor Driver |
| 功能 | Driver - Fully Integrated, Control and Power Stage | 匹配码 | L6207PD |
| 应用 | General Purpose | 单元数量 | 1 |
| 标准交期 | 12 weeks | 使用的IC/零件 | full bridge |
| 电机类型 - AC, DC | Brushed DC | 电机类型 - 步进 | Bipolar |
| 输出配置 | Full H-Bridge, (1) Single | 应用细节 | Full Bridge PWM Motor Driver |
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 150 °C |
| 最高温度限值 | 150°C | 结工作温度 | 150C |
