点击放大查看

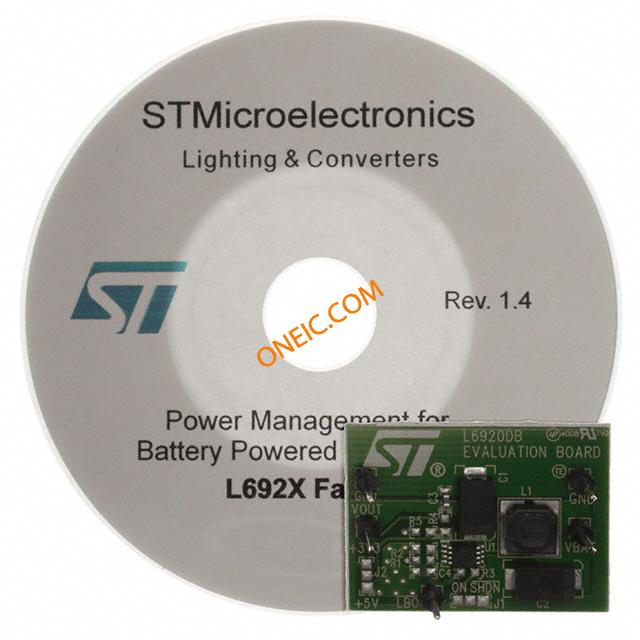

EVAL6920DB1
| 制造商 | |
| 描述 | L6920Db Synchronous Rectification Step Up Converter Evaluation Board Power Management IC Development Tools EVAL BOARD FOR EVAL BOARD FOR L6920DB |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-5503 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | ||
电气参数
| 额定电压 | 0.6 V | 输出电流 | 100 ~ 400mA |
| 稳压器拓扑 | Boost | 开关频率 | 1MHz |
| 最小输入电压 | 3.3V or 5V | ||
机械参数
| 电路板厚度 | Fully Populated | 尺寸/外形 | 17.5 mm to 12.6 mm |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 主要用途 | DC/DC, Step Up | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | L6920DB | 射频系列/标准 | L6920DB |
| 使用的IC/零件 | L6920 | ||
环境参数
| 机械寿命 | Obsolete | ||
