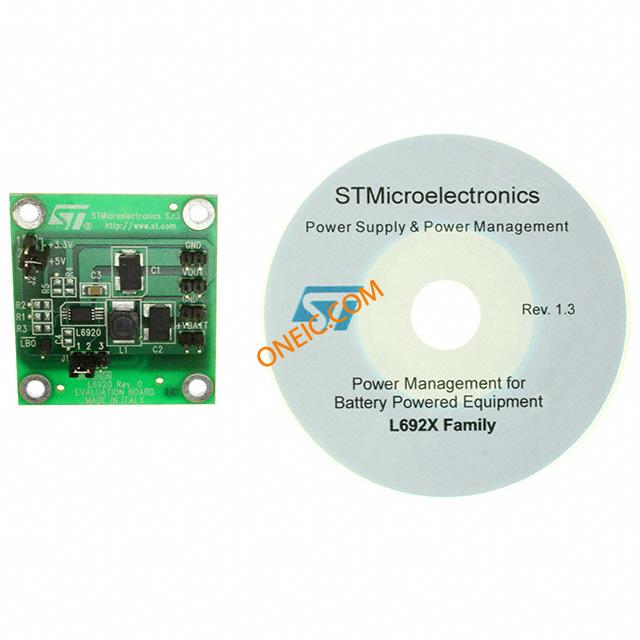

EVAL6920D
| 制造商 | |
| 描述 | Evaluation Board For 1A High Efficiency Synchronous Rectifier Step Up Converter Power Management IC Development Tools Eval Board for L6920 BOARD EVAL L6920D STEP UP CONV |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-4742 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
合规参数
| RoHS | No | 欧盟RoHS | Not Compliant |
电气参数
| 额定电压 | 1 V | 输出电流 | 1A |
| 稳压器拓扑 | Boost | 最小输入电压 | 2 V ~ 5.2 V |
机械参数
| 电路板厚度 | Fully Populated | 尺寸/外形 | 45 mm x 40 mm |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 主要用途 | DC/DC, Step Up | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | L6920D | 射频系列/标准 | L6920D |
| 使用的IC/零件 | L6920 | ||
环境参数
| 机械寿命 | Obsolete | ||
文档与媒体
相关型号
L6920DCTR
stmicroelectronics
Conv DC-DC Single Step Up 0.8V to 5.5V 8-Pin MSOP T/R DC-DC 5.5V 0.9A U MSOP-8 SMD IC REG BST SYNC 3.3/5V/ADJ 8MSOP Voltage Regulators - Switching Regulators Sync Rectifier Step Up Converter Switching Voltage Regulators Sync Rectifier Step Up Converter
L6920DTR
stmicroelectronics
Conv DC-DC Dual Step Up 0.6V to 5.5V 8-Pin TSSOP T/R DC/DC Switching Converters 0.6 to 5.5V Step-Up DC-DC 5.5V 1.0A U TSSOP-8 SMD IC REG BOOST SYNC 8TSSOP Voltage Regulators - Switching Regulators 0.6 to 5.5V Step-Up Switching Voltage Regulators 0.6 to 5.5V Step-Up
L6920DC
stmicroelectronics
Conv DC-DC Single Step Up 0.8V to 5.5V 8-Pin MSOP Tube STEP UP CONVERT IC REG BST SYNC 3.3/5V/ADJ 8MSOP L6920DC, DC-DC Converter, Adjustable, Step Up, 1MHz, 8-Pin MSOP Voltage Regulators - Switching Regulators Sync Rectifier Step Up Converter
L6920DB
stmicroelectronics
Conv DC-DC Single Step Up 0.8V to 5.5V 8-Pin MSOP Tube DC-DC 5.5V 0.8A U MSOP-8 SMD IC REG BST SYNC 3.3/5V/ADJ 8MSOP L6920DB, DC-DC Converter, Adjustable/Fixed 3.3, 5, 1.8 to 5.2V, Step Up, 1MHz, 8-Pin MSOP Voltage Regulators - Switching Regulators Synchronous Rectifer Step Up Converter STEP UP CONVERTER SYNC RECTFR, SMD DC/DCCON.1.8-5.2/3.3/5V DC-DC converter; step up; Uin:0.8÷5.5V; Uout:1.8÷5.2V; 500mA Switching Voltage Regulators Synchronous Rectifer Step Up Converter
L6920D
stmicroelectronics
Conv DC-DC Dual Step Up 0.6V to 5.5V 8-Pin TSSOP Tube DC-DC 5.5V 1.0A U TSSOP-8 SMD IC REG BOOST SYNC 8TSSOP L6920D, Dual DC-DC Converter, Adjustable/Fixed 3.3, 5, 2 to 5.2V, Step Up, 8-Pin TSSOP Voltage Regulators - Switching Regulators 0.6 to 5.5V Step-Up DC/DC UP CONVERTER, 6920, TSSOP8 DC/DCCON.1.8-5.2/3.3/5V Switching controller IC TSSOP-8, L6920D, ST STMicroelectronics , 双 直流-直流转换器, 升压, 8 → 55 V输入, 2 → 5.2 V, 3.3 V, 5 V输出, 8针 TSSOP封装 Switching Voltage Regulators 0.6 to 5.5V Step-Up
L6920DBTR
STMicroelectronics
Conv DC-DC Single Step Up 0.8V to 5.5V 8-Pin MSOP T/R STEP UP CONVERT IC REG BST SYNC 3.3/5V/ADJ 8MSOP Voltage Regulators - Switching Regulators SYNCRONOUS RECT. STEP UP CONVERTER Switching Voltage Regulators SYNCRONOUS RECT. STEP UP CONVERTER DC-DC 5.5V 0.8A U MSOP-8 SMD
