点击放大查看

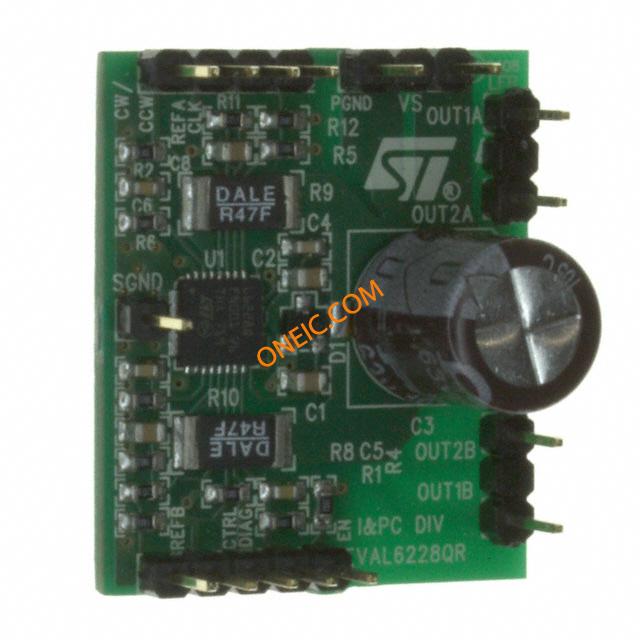

EVAL6228QR
| 制造商 | STMicroelectronics N.V. |
| 描述 | Evaluation Board Of The DMOS Fully Integrated L6228Q Power Management IC Development Tools EVAL BOARD L6228Q EvalBoard L6228Q StepMotDr _NO ROHS EVAL BOARD FOR L6228Q L6228Q, STEPPER MOTOR DRVR, DMOS, REF DESIGN BOARD |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Power Management Modules |
| 单位包装 | 1 | 其他名称 | 497-6818 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85423190 |
| 汽车级 | NO | 无铅定义 | Leaded |
电气参数
| 额定电压 | 8 V to 52 V | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 封装形式 | EvalBoard | 尺寸/外形 | 27 mm x 32 mm |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 套件类型 | :Power Management - Motor Control |
| 匹配码 | EVALL6228QR | 套件内容 | :Board |
| 主要用途 | Power Management, Motor Control | 标准交期 | 10 weeks |
| 工具类型/特性 | L6228Q | 主要特性 | 2-Ph Bipolar Stepper Motors |
| 使用的IC/零件 | L6228Q | 芯片组制造商 | :STMicroelectronics |
| 次要特性 | 8 V ~ 52 V Supply, 1.4 A Out | 应用细节 | EvalBoard |
文档与媒体
相关型号
L6228D
stmicroelectronics
Bipolar Stepper Motor Driver 24-Pin SO StepMotDr 1.4A 52V SO-24 SMD IC MOTOR DRIVER PAR 24SO L6228D, Full Bridge Motor Driver, Bipolar Stepping Motor Driver, 8 to 52V, 24-Pin SOIC Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor BIPOLAR STEPPER MOTOR DRIVER, SO-24 DRIVERSTEPPERMOTOR,24PINSOIC STMicroelectronics 电机驱动器 IC 步进电机, 1.4A, 8 → 52 V
L6228PDTR
stmicroelectronics
Bipolar Stepper Motor Driver 36-Pin PowerSO T/R Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor StepMotDr 1.4A 52V PwrSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6228PDTR, Stepper Motor Driver, Bipolar Stepping Motor Driver, 8 to 52V, 36-Pin PowerSO IC,L6228PDTR STMicroelectronics 电机驱动器 IC 步进电机, 1.4A, 100kHz, 8 → 52 V
L6228DTR
stmicroelectronics
Bipolar Stepper Motor Driver 24-Pin SO T/R StepMotDr 1.4A 52V SO-24 SMD IC MOTOR DRIVER PAR 24SO Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor
L6228PD
stmicroelectronics
Bipolar Stepper Motor Driver 36-Pin PowerSO StepMotDr 1.4A 52V PwrSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6228PD, Full Bridge Motor Driver, Bipolar Stepping Motor Driver, 8 to 52V, 36, 38-Pin PowerSO Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor MOTOR DRIVR, DMOS, 1.4A, 100KHZ, 36PWRSO L6228PD Driver; stepper motor controller; 1.4A; Channels:1; SO36 STMicroelectronics 电机驱动器 IC TR 步进电机, 1.4A, 8 → 52 V
L6228N
stmicroelectronics
Bipolar Stepper Motor Driver 24-Pin Power DIP StepMotDr 1.4A 52V DIP-24 THT IC MOTOR DRIVER PAR 24POWERDIP L6228N, Motor Driver, Bipolar Stepping Motor Driver, 8 to 52V, 24-Pin Power PDIP, PowerDIP Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor BIPOLAR STEPPER MOTOR DRIVER, 6228 DMOSDRIVERSTEPPERMTR STMicroelectronics 步进电机驱动器 步进电机, 1.4A, 8 → 52 V
129393
Silvertronic
Test Leads Auto Test Lead Set
L6228Q
stmicroelectronics
Stepper Motor Driver 32-Pin VFQFPN EP StepMotDr 1.4A 52V QFN5x5 SMD IC MOTOR DRIVER PAR 32VFQFPN Motor / Motion / Ignition Controllers & Drivers DMOS Dual Full Bridge w/ PWM MOTOR DRIVER, DMOS, BIPLR, 2.8A, 32QFN
L6228QTR
stmicroelectronics
Stepper Motor Driver 32-Pin VFQFPN EP T/R StepMotDr 1.4A 52V QFN5x5 SMD IC MOTOR DRIVER PAR 32VFQFPN Motor / Motion / Ignition Controllers & Drivers DMOS Dual Full Bridge w/ PWM
