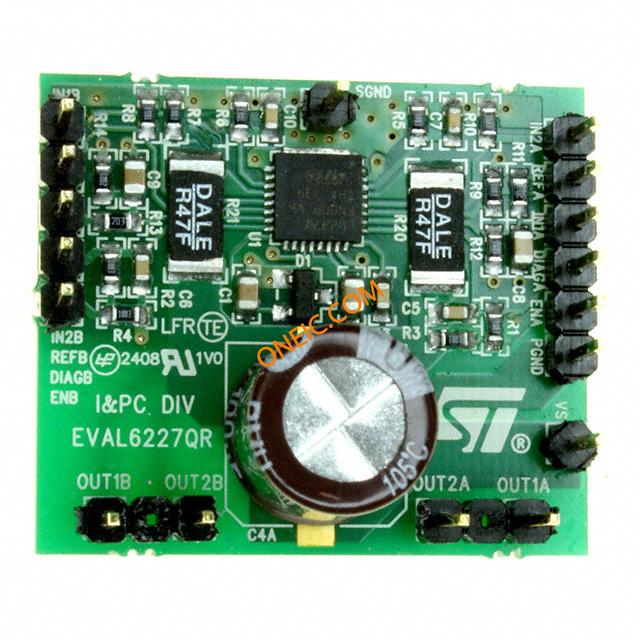

EVAL6227QR
| 制造商 | STMicroelectronics N.V. |
| 描述 | Demonstration Board Using A Dual Full-Bridge L6227Q For Motor Control Applications Power Management IC Development Tools Dual Full Bridge L6227Q Eval DEMO EvalBoard L6227Q 2xH-Br _NO ROHS EVAL BOARD FOR L6227Q |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Power Management Development Tools |
| 单位包装 | 1 | 其他名称 | 497-6817 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | 汽车级 | NO |
| 无铅定义 | Leaded | ||
电气参数
| 额定电压 | 8 V to 52 V | 输出电流 | 1.4 A |
机械参数
| 包装方式 | Bulk | 封装形式 | EvalBoard |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 匹配码 | EVALL6227QR |
| 主要用途 | Power Management, Motor Control | 标准交期 | 12 weeks |
| 工具类型/特性 | L6227Q | 主要特性 | Stepper, Bi-Polar/2-Phase, 1A DC, 8 ~ 52V Output, PWM Current Control |
| 使用的IC/零件 | L6227Q | 次要特性 | Thermal Protection, Internal Free Wheeling Diodes |
| 应用细节 | EvalBoard | ||
相关型号

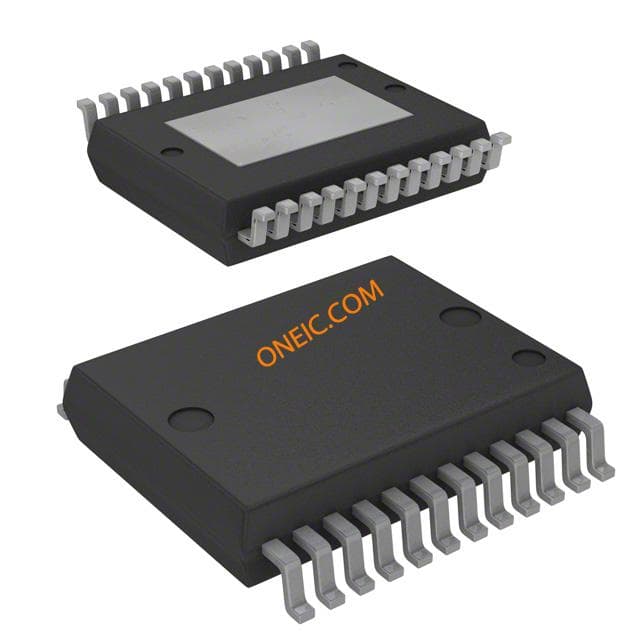

L6227N
stmicroelectronics
DMOS Full Bridge PWM Motor Driver 48V 24-Pin Power PDIP Tube 2xH-Br 1.4A 52V DIP-24 THT IC MOTOR DRIVER PAR 24POWERDIP L6227N, Full Bridge Motor Driver, Full Bridge PWM, 8 to 52V, 24-Pin Power PDIP Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge DMOSDUALDRIVER STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 1.4A, 8 → 52 V
L6227PD
stmicroelectronics
DMOS Full Bridge PWM Motor Driver 48V 36-Pin PowerSO Tube Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge 2xH-Br 1.4A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6227PD, Full Bridge Motor Driver, Full Bridge PWM, 8 to 52V, 36, 38-Pin PowerSO MOTOR CNTRL, DUAL, DMOS, 1.4A, 36PWRSO L6227PD PowerSPIN: DMos Dual Full Bridge Driver With PWM Current Controller STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 1.4A, 100kHz, 8 → 52 V

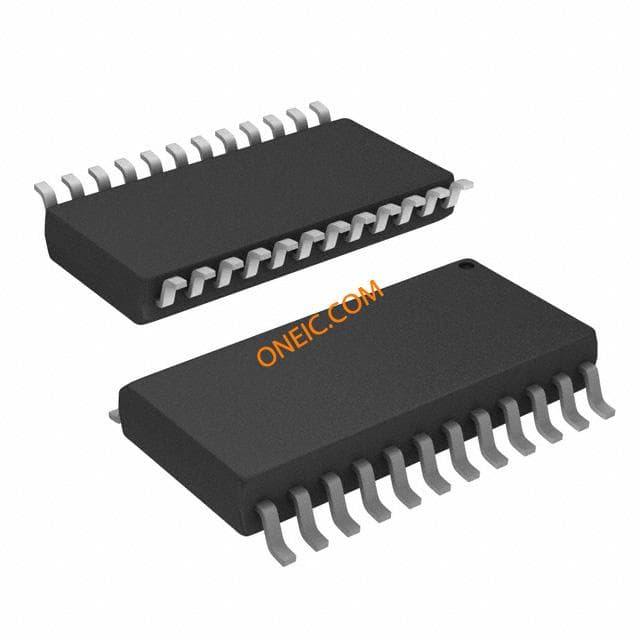

L6227DTR
stmicroelectronics
DMOS Full Bridge PWM Motor Driver 48V 24-Pin SO T/R 2xH-Br 1.4A 52V SO-24 SMD IC MOTOR DRIVER PAR 24SOIC Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge
L6227D
stmicroelectronics
DMOS Full Bridge PWM Motor Driver 48V 24-Pin SO Tube Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge 2xH-Br 1.4A 52V SO-24 SMD IC MOTOR DRIVER PAR 24SOIC L6227D, Full Bridge Motor Driver, Full Bridge PWM, 8 to 52V, 24-Pin SOIC MOTOR CNTRL, DUAL, DMOS, 1.4A, 24SOIC L6227D STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 1.4A, 8 → 52 V

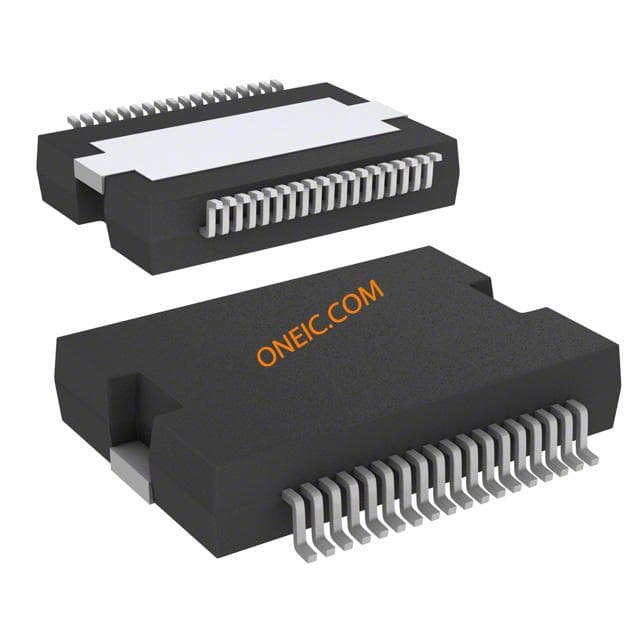

L6227PDTR
stmicroelectronics
DMOS Full Bridge PWM Motor Driver 48V 36-Pin PowerSO T/R 2xH-Br 1.4A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge

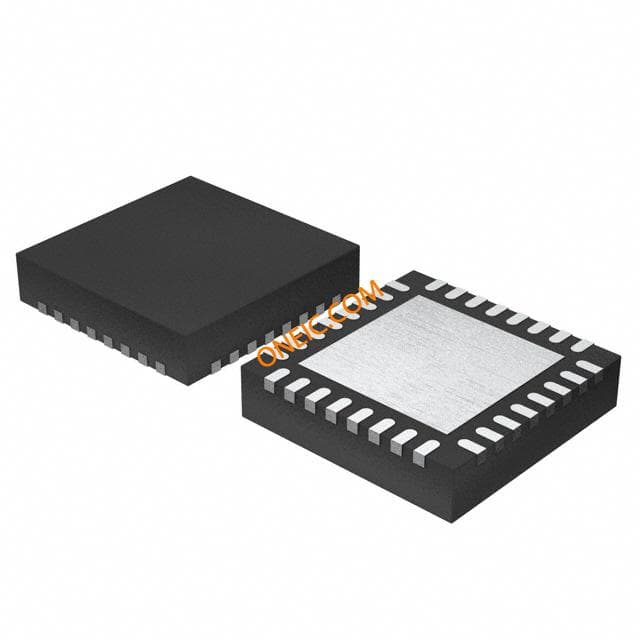

L6227Q
stmicroelectronics
MOSFET DRVR 2.8A 4-OUT Hi/Lo Side Full Brdg 32-Pin VFQFPN Tube 2xH-Br 1.4A 52V QFN5x5 SMD IC MOTOR DRIVER PAR 32VFQFPN Gate Drivers DMOS DUAL FULL Bridge w/ PWM MOTOR DRIVER, DUAL, 2.8A, PWM, 32QFN
L6227QTR
stmicroelectronics
MOSFET DRVR 2.8A 4-OUT Hi/Lo Side Full Brdg 32-Pin VFQFPN T/R 2xH-Br 1.4A 52V QFN5x5 SMD IC MOTOR DRIVER PAR 32VFQFPN Gate Drivers DMOS DUAL FULL Bridge w/ PWM
