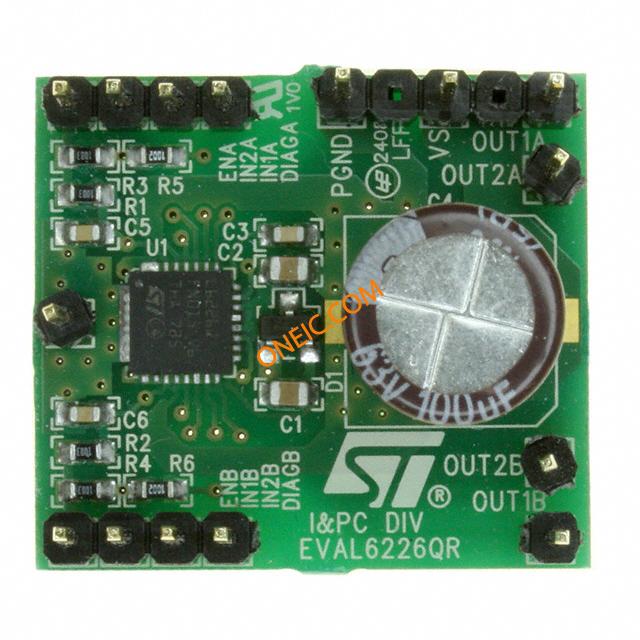

EVAL6226QR
| 制造商 | STMicroelectronics N.V. |
| 描述 | Demonstration Board Using A Dual Full-Bridge L6226Q For Motor Control Applications Power Management IC Development Tools Dual Full-Bridge L6226Q Demo BRD EvalBoard L6226Q 2xH-Br _NO ROHS EVAL BOARD FOR L6226Q INDUSTRIAL |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Power Management Modules |
| 单位包装 | 1 | 其他名称 | 497-6816 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85423990 |
| 汽车级 | NO | 无铅定义 | Leaded |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 封装形式 | EvalBoard | 尺寸/外形 | 27 mm x 24.5 mm |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 匹配码 | EVALL6226QR |
| 主要用途 | Power Management, Motor Control | 标准交期 | 12 weeks |
| 工具类型/特性 | L6226Q | 主要特性 | Stepper, Bi-Polar/2-Phase, 1A DC, 8 ~ 52V Output |
| 使用的IC/零件 | L6226Q | 次要特性 | Thermal Protection, Internal Free Wheeling Diodes |
| 应用细节 | EvalBoard | ||
文档与媒体
相关型号
L6226N
stmicroelectronics
DMOS Dual Full Bridge Driver 48V 24-Pin Power PDIP Tube 2xH-Br 1.4A 52V DIP-24 THT IC MOTOR DRIVER PAR 24POWERDIP L6226N, Full Bridge Motor Driver, DMOS Dual Full Bridge Driver, 8 to 52V, 24-Pin Power PDIP Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge DMOSDualFullBridgeDriver STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 1.4A, 8 → 52 V
L6226DTR
stmicroelectronics
DMOS Dual Full Bridge Driver 48V 24-Pin SO T/R DUAL FULL BRIDG IC MOTOR DRIVER PAR 24SOIC Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge L6226 Series Dual Full Bridge 52 V 2.8 A 0.73 Ohm DMOS Driver - SOIC-24
L6226PD
stmicroelectronics
DMOS Dual Full Bridge Driver 48V 36-Pin PowerSO Tube 2xH-Br 1.4A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6226PD, Full Bridge Motor Driver, DMOS Dual Full Bridge Driver, 8 to 52V, 36, 38-Pin PowerSO Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge MOTOR CNTRL, DUAL, DMOS, 2.8A, 36PWRSO L6226PD STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 1.4A, 8 → 52 V
L6226PDTR
stmicroelectronics
DMOS Dual Full Bridge Driver 48V 36-Pin PowerSO T/R DUAL FULL BRIDG IC MOTOR DRIVER PAR 36POWERSO Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge STMicroelectronics 电机驱动器 IC L6226PD, 用于有刷直流电机, 1.4A, 100kHz, 8 → 52 V 2xH-Br 1.4A 52V PowerSO-36 SMD
L6226D
stmicroelectronics
DMOS Dual Full Bridge Driver 48V 24-Pin SO Tube 2xH-Br 1.4A 52V SO-24 SMD IC MOTOR DRIVER PAR 24SOIC L6226D, Full Bridge Motor Driver, DMOS Dual Full Bridge Driver, 8 to 52V, 24-Pin SOIC Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge MOTOR CNTRL, DUAL, DMOS, 2.8A, 24SOIC L6226D STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 1.4A, 8 → 52 V
L6226QTR
stmicroelectronics
MOSFET DRVR 2.8A 4-OUT Hi/Lo Side Full Brdg 32-Pin VFQFPN T/R Power Driver ICs DMOS Full Bridge Driver 2xH-Br 1.4A 52V QFN5x5 SMD IC MOTOR DRIVER PAR 32VFQFPN Gate Drivers DMOS Full Bridge Driver
L6226Q
stmicroelectronics
MOSFET DRVR 2.8A 4-OUT Hi/Lo Side Full Brdg 32-Pin VFQFPN Tube 2xH-Br 1.4A 52V QFN5x5 SMD IC MOTOR DRIVER PAR 32VFQFPN Gate Drivers DMOS Full Bridge Driver MOTOR DRIVER, DUAL, DMOS, 2.8A, 32QFN STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 1.4A, 100kHz, 8 → 52 V
