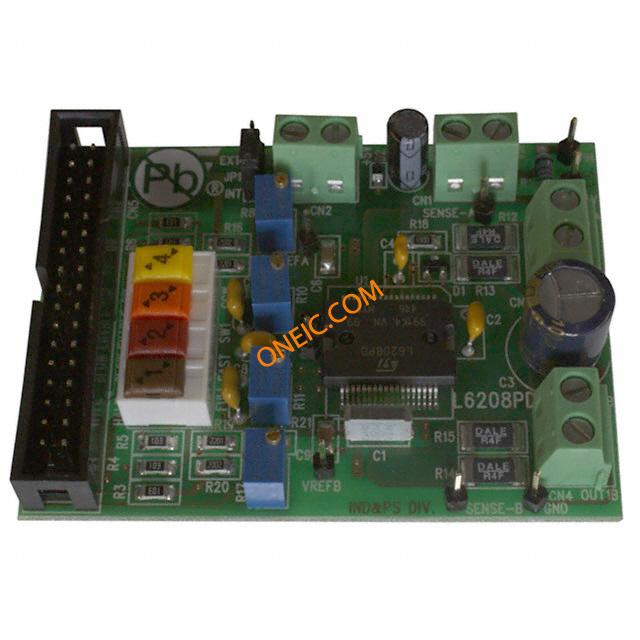

EVAL6208PD
| 制造商 | STMicroelectronics N.V. |
| 描述 | DMOS Driver For Bipolar Stepper Motor In Powerdip Package Evaluation Board Power Management IC Development Tools Eval Brd for L6208PD EvalBoard L6208PD StepMotDr _NO ROHS EVAL BOARD FOR L6208 SERIES L6208, DMOS DRIVER, STEPPER MOTOR, EVAL BOARD |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Power Management Development Tools |
| 单位包装 | 1 | 其他名称 | 497-4136 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85423190 | 无铅定义 | Leaded |
电气参数
| 额定电压 | 5 V | 元件数量 | :L6208 |
机械参数
| 重量 | 0.000001 | 包装方式 | Bulk |
| 封装形式 | EvalBoard | 供货尺寸 | STMicroelectronics |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 功能 | For L6208PD stepper motor driver |
| 套件类型 | :Power Management - Motor Control | 匹配码 | EVALL6208PD |
| 应用 | Motor Control | 主要用途 | Power Management, Motor Control |
| 标准交期 | 10 weeks | 工具类型/特性 | ST72F264 |
| 主要特性 | Stepper, Bi-Polar/2-Phase, PWM Current Control | 射频系列/标准 | L6208 |
| 使用的IC/零件 | L6208 | 芯片组制造商 | :STMicroelectronics |
| 次要特性 | 2 H-Bridge, 8 ~ 52V Output, Use with PractiSPIN | 应用细节 | EvalBoard |
文档与媒体
相关型号
L6208N
stmicroelectronics
Bipolar Stepper Motor Driver 24-Pin Power DIP StepMotDr 2.8A 52V DIP-24 THT IC MOTOR DRIVER PAR 24POWERDIP Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor BIPOLAR STEPPER MOTOR DRIVER, 6208 DRIVERSTEPPERMOTOR24PINPWRDIP Driver; PWM controller; 7.1A; 52V; Channels:4; DIP24 Motor Driver IC DIL-24S, L6208N, ST STMicroelectronics 电机驱动器 IC 步进电机, 2.8A, 100kHz, 8 → 52 V
EVALPRACTISPIN
stmicroelectronics
L6235 DMOS Driver For Three-Phase Brushless DC Motor Evaluation Board Power Management IC Development Tools PractiSpin Eval Brd L62xx Family EVALUATION BOARD PRACTISPIN INTERFACE BOARD, MOTOR CONTROL, PRACTISPIN
L6208PD013TR
stmicroelectronics
Bipolar Stepper Motor Driver 36-Pin PowerSO T/R StepMotDr 2.8A 52V PwrSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor
L6208PD
stmicroelectronics
Bipolar Stepper Motor Driver 36-Pin PowerSO StepMotDr 2.8A 52V PwrSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6208PD, Motor Driver, 8 to 52V, 38-Pin PowerSO Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor IC, DMOS DRIVER, SMD Motor Driver IC PowerSO-36, L6208PD, ST STMicroelectronics 电机驱动器 IC 步进电机, 2.8A, 100kHz, 8 → 52 V
L6208D
stmicroelectronics
Bipolar Stepper Motor Driver 24-Pin SO StepMotDr 2.8A 52V SO-24 SMD IC MOTOR DRIVER PAR 24SO L6208D, Stepper Motor Driver, 7.1A Bipolar Stepping Motor Driver, 100kHz 8 to 52V, 24-Pin SOIC Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor BIPOLAR STEPPER MOTOR DRIVER, SMD IC,L6208D Driver; PWM controller; 7.1A; 52V; SO24 STMicroelectronics 电机驱动器 IC 步进电机, 2.8A, 100kHz, 8 → 52 V
L6208D013TR
stmicroelectronics
Bipolar Stepper Motor Driver 24-Pin SO T/R Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor STEP MOTOR DRIV IC MOTOR DRIVER PAR 24SO
