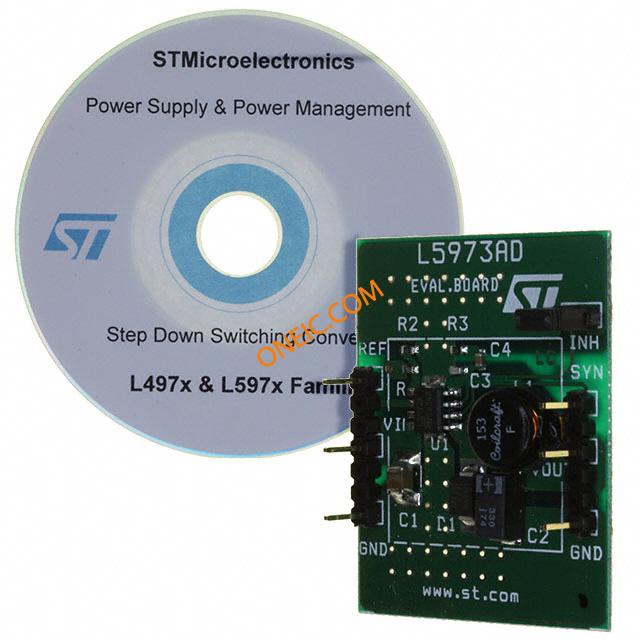

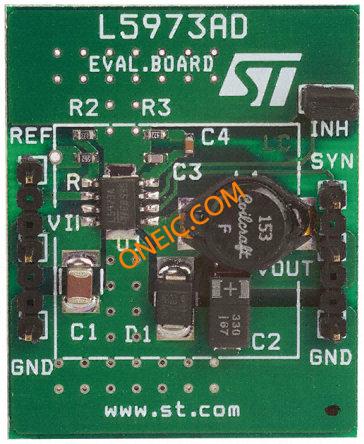

EVAL5973AD
| 制造商 | STMicroelectronics N.V. |
| 描述 | Evaluation Board For L5973 Series Power Management IC Development Tools L5973AD 2A Step Down A5973 Regulator BRD EVAL BOARD FOR L5973 SERIES Development Kit, Power Management With Evaluation Board for L5973AD |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-4133 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | ||
电气参数
| 额定电压 | 4.4 V to 36 V | 输出电流 | 2A |
| 稳压器拓扑 | Buck | 开关频率 | 500kHz |
| 最小输入电压 | 1.235 V ~ 35 V | ||
机械参数
| 电路板厚度 | Fully Populated | 尺寸/外形 | 42 mm x 34 mm |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 技术 | Power Management | 套件内容 | Evaluation Board for L5973AD |
| 主要用途 | DC/DC, Step Down | 卡标准 | Development Kit |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | L5973AD |
| 使用的IC/零件 | L5973A | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | + 70 C |
相关型号
L5973D013TR
stmicroelectronics
Conv DC-DC Single Step Down 4V to 36V 8-Pin HSOP EP T/R DC-DC 36V 2.5A D HSOP-8E SMD IC REG BUCK ADJ 2.5A 8SOIC Voltage Regulators - Switching Regulators 2.5 A Step-DN Switching Reg BUCK, 4-36V, 2.5A, 1.235-35V, 8HSOP Switching Voltage Regulators 2.5 A Step-DN Switching Reg
L5973ADTR
stmicroelectronics
Conv DC-DC Single Step Down 4V to 36V 8-Pin HSOP EP T/R IC REG BUCK ADJ 2A 8SOIC Voltage Regulators - Switching Regulators 1.235 to 35V Step-Dn Switching Voltage Regulators 1.235 to 35V Step-Dn DC-DC 36V 2.0A D HSOP-8E SMD
L5973AD
stmicroelectronics
Conv DC-DC Single Step Down 4V to 36V 8-Pin HSOP EP Tube STEP DOWN REG IC REG BUCK ADJ 2A 8SOIC L5973AD, Switching Regulator, Buck Controller,, Adjustable, 1.235 to 35V, 500kHz, 8-Pin HSOP-EP Voltage Regulators - Switching Regulators 1.235 to 35V Step-Dn IC, BUCK REG, SMD, 5973, HSOP8 REGULATOR,SWITCH,STEP-DOWN,2A,8PINHSOP DC-DC converter; step down; Uin:4.4÷36V; Uout:1.2÷35V; 2A; SO8 Switching controller IC HSOP-8EP, L5973AD, ST STMicroelectronics 降压 开关稳压器, 可调输出, 1.235 → 35 V, 500 kHz, 8针 HSOP封装 Switching Voltage Regulators 1.235 to 35V Step-Dn
L5973D
stmicroelectronics
Conv DC-DC Single Step Down 4V to 36V 8-Pin HSOP EP Tube DC-DC 36V 2.5A D HSOP-8E SMD IC REG BUCK ADJ 2.5A SOIC8 L5973D, Switching Regulator, Buck Controller, 2A, Adjustable, 1.235 to 35V, 275kHz, 8-Pin HSOP-EP Voltage Regulators - Switching Regulators 1.235 to 35V Step-Dn IC, BUCK REG, SMD, 5973, HSOP8 REGULATOR,LDO,SWITCH,STEP-DOWN,2.5A,8PINHSOIC DC-DC converter; step down; Uin:4.4÷36V; Uout:1.2÷35V; 2.5A; SO8 Switching controller IC HSOP-8EP, L5973D, ST STMicroelectronics 降压 开关稳压器, 2A, 可调输出, 1.235 → 35 V, 275 kHz, 8针 HSOP封装 Switching Voltage Regulators 1.235 to 35V Step-Dn
