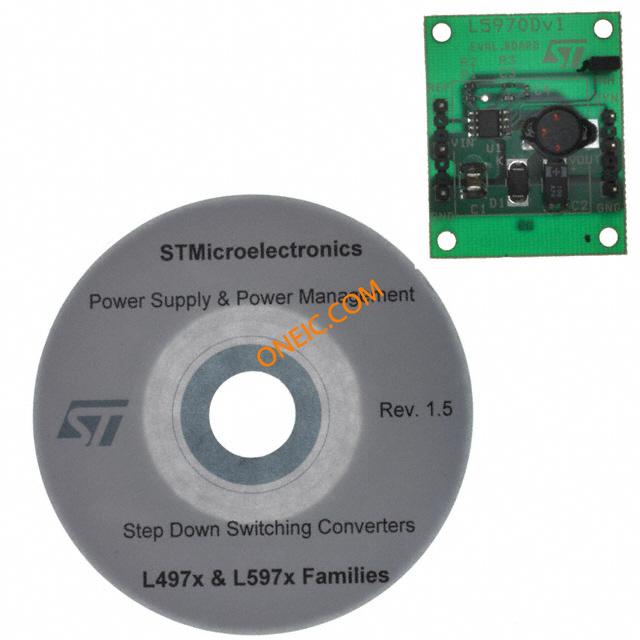

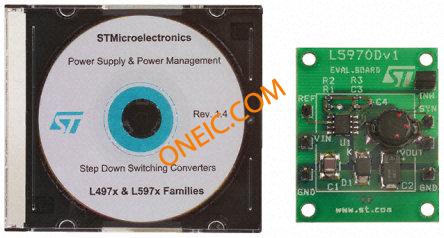

EVAL5970D
| 制造商 | |
| 描述 | L5970D Up To 1A Step Down Swtching Regulator Evaluation Board Power Management IC Development Tools Eval Board for L5970 EVAL BOARD FOR L5970 SERIES Development Kit, Power Management With Evaluation Board for L5970D |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-4132 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | 欧盟RoHS | Not Compliant |
电气参数
| 额定电压 | 4.4 V to 36 V | 输出电流 | 1A |
| 稳压器拓扑 | Buck | 开关频率 | 250kHz |
| 最小输入电压 | 1.235 V ~ 35 V | ||
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 42 mm x 34 mm | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 技术 | Power Management | 套件内容 | Evaluation Board for L5970D |
| 主要用途 | DC/DC, Step Down | 卡标准 | Development Kit |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | L5970D |
| 射频系列/标准 | L5970D | 使用的IC/零件 | L5970 |
文档与媒体
相关型号
L5970D013TR
stmicroelectronics
Conv DC-DC Single Step Down 4.4V to 36V 8-Pin SO N T/R DC-DC 36V 1.0A D SO-8 SMD IC REG BUCK ADJ 1A 8SOIC L5970D013TR, Switching Regulator, Buck Controller, 1A, Adjustable, 275kHz, 8-Pin SO Voltage Regulators - Switching Regulators 1.2 to 35V Step-Down BUCK, 4.4-36V, 250KHZ, 1A, 1.2-35V, 8SO IC,L5970D013TR Switching controller IC SO-8, L5970D013TR, ST STMicroelectronics 降压 开关稳压器, 1A, 可调输出, 275 kHz, 8针 SOIC封装 Switching Voltage Regulators 1.2 to 35V Step-Down
L5970ADTR
stmicroelectronics
Conv DC-DC Single Step Down 4.4V to 36V 8-Pin SO N T/R DC/DC Switching Regulators STEP DOWN MONOLITHIC SWITCH REG 1.5A STEP DOWN REG IC REG BUCK ADJ 1.5A 8SOIC Voltage Regulators - Switching Regulators STEP DOWN MONOLITHIC SWITCH REG 1.5A Conv DC-DC Single-OUT Step Down 8-Pin SOP T/R Switching Voltage Regulators STEP DOWN MONOLITHIC SWITCH REG 1.5A
L5970D
stmicroelectronics
Conv DC-DC Single Step Down 4.4V to 36V 8-Pin SO N Tube DC-DC 36V 1.0A D SO-8 SMD IC REG BUCK ADJ 1A 8SOIC L5970D, Switching Regulator, Buck Controller, 1A, Adjustable, 1.2 to 35V, 275kHz, 8-Pin SO Voltage Regulators - Switching Regulators 1.2 to 35V Step-Down IC, BUCK REG, SMD, 5970, SOIC8 REGULATOR,LDO,STEP-DOWN,1A,8PINSOIC Switching controller IC SO-8, L5970D, ST STMicroelectronics 降压 开关稳压器, 1A, 可调输出, 1.2 → 35 V, 275 kHz, 8针 SOIC封装 Switching Voltage Regulators 1.2 to 35V Step-Down
