点击放大查看

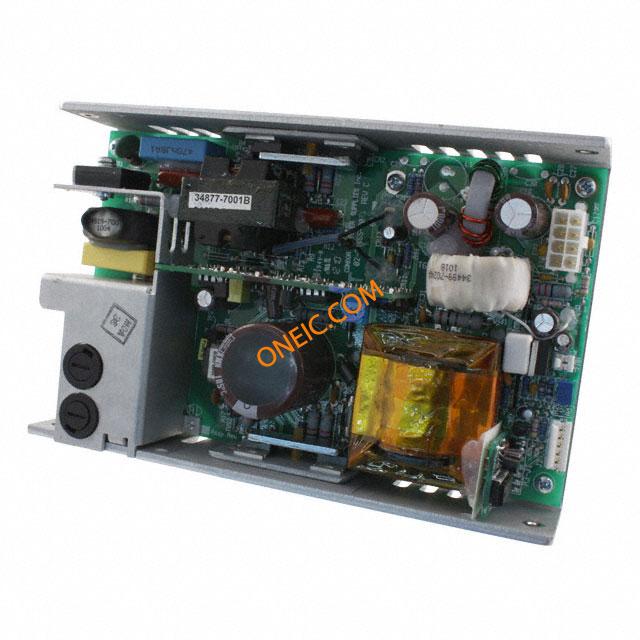

GLD150-24G
| 制造商 | SL Power Electronics |
| 描述 | AC/DC Power Supply Single-OUT 24V 6.2A 150W 21-Pin PWR SPLY MED SWITCHER 150W 24V POWERSUPPLY,SWITCHER,MEDICAL,150W,24V@6.5A |
| 分类 |
商业参数
| 交货时间 | 112 Days | 子类别 | AC to DC Power Supply |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CEMarkedtoLVD |
| 认证机构 | CE, CSA, IEC, UL | ||
电气参数
| 输出端 | 0.5%rms | 频率 | 47 to 63 Hz |
| 操作方式 | Switching | 效率 | 80(Min) % |
| 最大功率 | 150 W | 功率（瓦） | 150W |
| 额定输出功率 | 150W | 额定电压 | 85 to 264 V |
| 电源调整率 | 2% | 负载调整率 | 2% |
| 输出电流 | 6.2 A | 输出数量 | 1 |
| 供电类型 | Switching (Open Frame) | 过载保护 | 14±1.1V |
| 最大功率（瓦特） | 150W | 输入偏置电流 | 2.8A(Max.)@90VAC,60Hz |
| 最大额定电流 | 2.8 A | 最小输入电压 | 24V |
机械参数
| 安装类型 | Chassis Mount | 安装样式 | Panel |
| 主要材料 | AC-DC | 尺寸/外形 | 7.00" L x 4.50" W x 1.70" H (177.8mm x 114.3mm x 43.2mm) |
产品信息
| 类型 | Switching | 产品特性 | RemoteSense |
| 应用 | Medical | 制造商全称 | GLD150GSeries |
| 配置 | OpenFrame | 适用产品/相关产品 | GLD150-24 |
环境参数
| 运行时间（小时） | 25ms | 工作温度 | 0 to 50 °C |
相关型号
0039012080
molex
Conn Housing RCP 8 POS 4.2mm Crimp ST Bag CONN RECEPT 8POS DUAL
0039014051
molex
Conn Housing RCP 5 POS 4.2mm Crimp ST Cable Mount Bag Conn Housing F 5 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 5POS VERT SINGLE

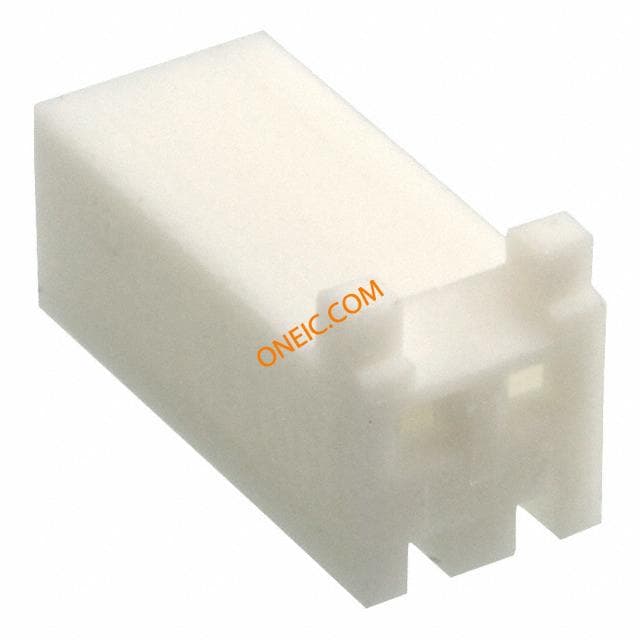

770602-2
te connectivity / amp
Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2 POS CST-100 2 way socket housing,2.54mm pitch Headers & Wire Housings 2P CST-100 HOUSING Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 2Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 2WAY Connector;Nylon;Receptacle;2;White;Crimp;180deg;0.1in.;UL94V-0 Plug; wire-board; female; PIN:2; polarized, w/o terminals; 2.54mm Crimp housing 2P, 770602-2, TE Connectivity TE Connectivity CST-100 系列 2.54mm 节距 2 路 直 母 电缆安装 PCB 壳体

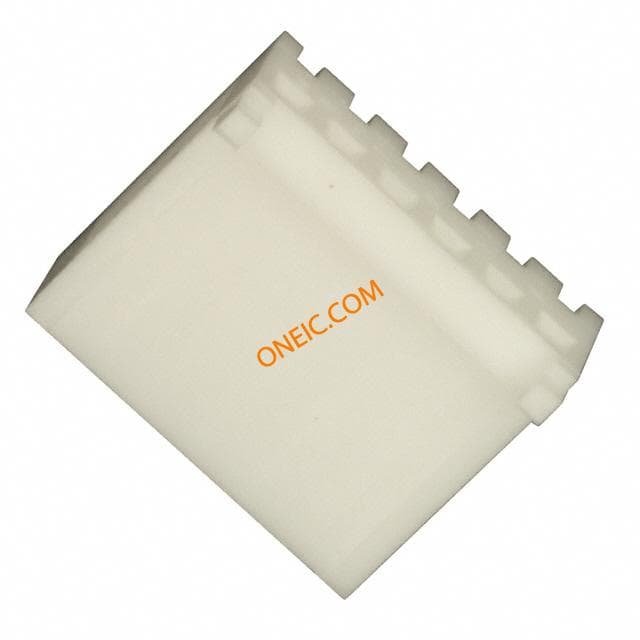

770602-6
