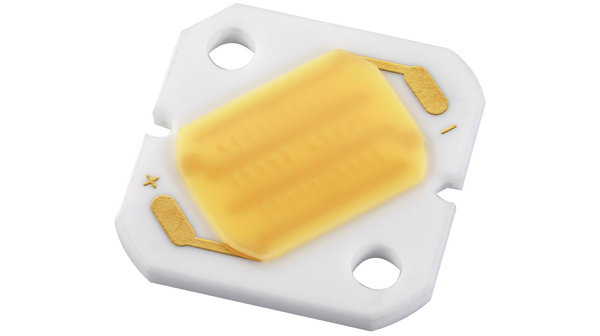

GW5BQC15L02
| 制造商 | Sharp Corporation |
| 描述 | LED Lighting Modules High CRI 2700K 3.6W module LED Uni-Color White 2-Pin Tray LED MOD 3.6WATT ZENIGATA 2700K LED MOD, 3.6W, 160LM, 2700K, CRI 85 Power LED 3.6 W warm white, GW5BQC15L02, Sharp |
| 分类 |
商业参数
| 产品 | LED Modules | 产品类别 | LED Lighting Modules |
| 标准包装数量 | 400 | 工厂包装数量 | 400 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
| 海关税号 | 85423990 | ||
电气参数
| 电压 | 10.2V | 波长 | 2725K |
| 灯输出 | Yes | 最大功率 | :Square |
| 光通量 | 160 lm | 额定功率 | 3.6 W |
| 输出电流 | 360mA | 驱动电路 | No |
| 供电电压 | :10.2V | LED正向电流 | 360 mA |
| LED正向电压 | 10.2 V | 最大额定电流 | 400mA |
| 主波长 | 2700 K | 最大功耗 | :4.4W |
| 反向恢复时间（trr） | :-15V | 直流正向电流（If）（最大） | :400mA |
| 峰值脉冲电流（10/1000µs） | 400 | 栅极触发电压 Vgt (最大) | -15 |
机械参数
| 尺寸 | 18 mm x 18 mm x 2 mm | 颜色 | White |
| 宽度 | 18 mm | 高度 | 2 mm |
| 长度 | 18 mm | 重量 | 0.002 |
| LED颜色 | :Warm White | 包装方式 | Bulk |
| 灯颜色 | 2725K | 透镜样式 | Rectangular |
| 安装类型 | Screw | 安装样式 | Top Mount |
| 引脚数 | :2 | 光学材料（应为封装材料） | :Array |
| 连接器用途 | No | 磁芯材质 | InGaN |
| 总长度 | 18 | 照明颜色 | Warm White |
| 位数 | 2 | 外壳尺寸-插件 | 1.5 |
| 显色指数（CRI） | 85 | ||
产品信息
| 类型 | Uni-Color | 系列 | :ZENIGATA |
| 色温 (K) | :2870K | 配置 | Square |
| LED数量 | 30 | 印刷电路板数量 | 2 |
环境参数
| 机械寿命 | Obsolete | 工作温度 | :-30°C |
| 光通量 @ 电流/温度 | 160 lm | ||
