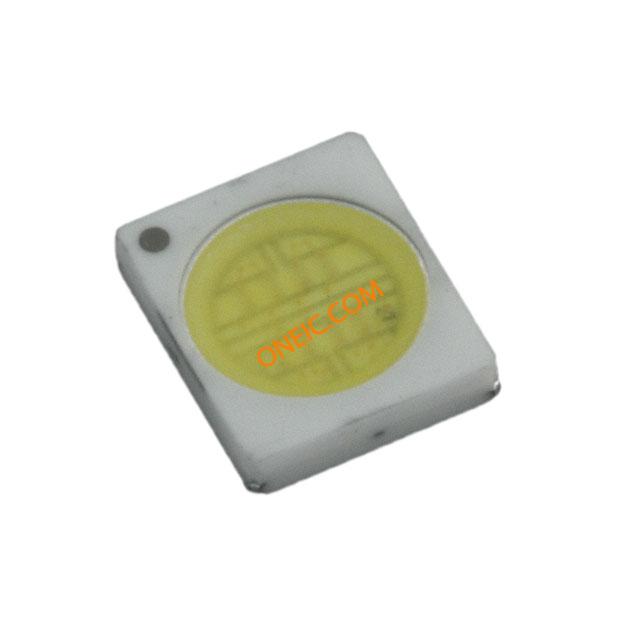

WZ10150-U2
| 制造商 | Seoul Semiconductor Co., Ltd. |
| 描述 | Z-POWER,Z1 SERIES,PURE WHITE, 100-118LM LED COOL WHITE 6300K DIFF SMD |
| 分类 |
商业参数
| 其他名称 | 897-1010-2 | 标准包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 视角 | 120° | 输出电流 | 400mA |
| 供电电压 | 3.6V | 最大额定电流 | 450mA |
| 光效 @ 测试电流 | 76 lm/W | 25°C时测试电流下的光通量 | 110 lm (100 lm ~ 119 lm) |
| 光通量 @ 85°C, 测试电流 | 99 lm | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 安装类型 | Surface Mount |

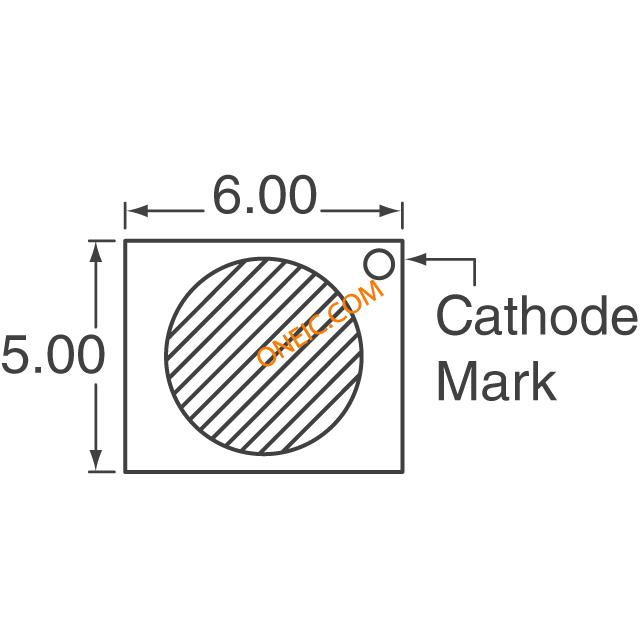

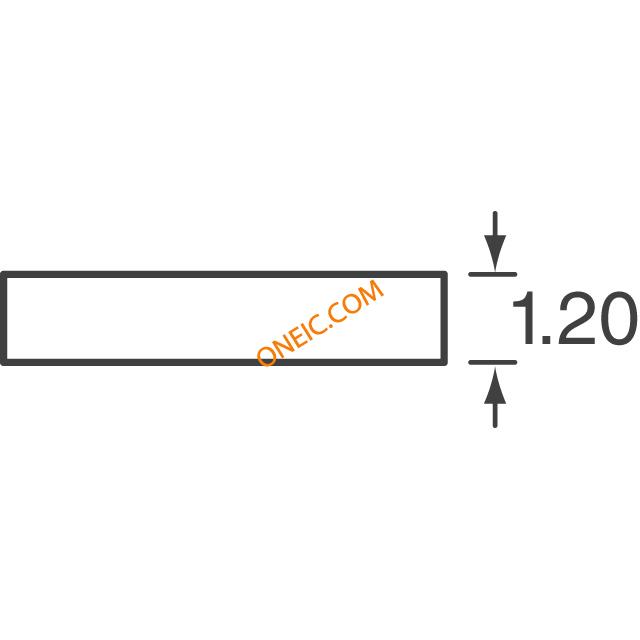

| 封装形式 | 6.00mm L x 5.00mm W x 1.20mm H | 显色指数（CRI） | 68 |
产品信息
| 色温 (K) | 6300K (Typ) | ||
环境参数
| 封装热阻 | 14°C/W | 光通量 @ 电流/温度 | 132 lm |
