N42180-06-T1-HL
| 制造商 | Seoul Semiconductor Co., Ltd. |
| 描述 | High Power LEDs - White Warm White 3000K 3.8W, 70-80lm LED WARM WHITE 2800K 350MA SMD |
| 分类 |
商业参数
| 其他名称 | 897-1048-2 | 产品类别 | High Power LEDs - White |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 光通量 | 72 lm | 视角 | 126 deg |
| 输出电流 | 350mA | 供电电压 | 3.25V |
| LED正向电流 | 350 mA | LED正向电压 | 3.25 V |
| 最大额定电流 | 800mA | 光效 @ 测试电流 | 66 lm/W |
| 25°C时测试电流下的光通量 | 75 lm (70 lm ~ 80 lm) | 光通量 @ 85°C, 测试电流 | 64 lm |
机械参数
| 高度 | 5.08 mm | 长度 | 7.4 mm |
| 包装方式 | Reel | 灯颜色 | 3000 K |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 封装形式 | 2-SMD, Gull Wing | 照明颜色 | Warm White |
| 显色指数（CRI） | 93 | ||
产品信息
| 色温 (K) | 2750K (2600K ~ 2900K) | ||
环境参数
| 工作温度 | + 85 C | 封装热阻 | 7.2°C/W |
| 光通量 @ 电流/温度 | 154 lm | ||
相关型号
803126
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON K2 BRD STAR LED IMS LUXEON K2
803267
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON REBEL ARRAY LED IMS LUXEON REBEL
803291
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR NICHIA PWR LED 6.5X5 BOARD LED IMS NICHIA PWRLED
803129
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR SEOUL P4 BOARD LED IMS SEOUL SEMI Z-PWR
803269
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY SEOUL P4 ARRAY LED IMS SEOUL SEMI ZPWR
803790
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY CREE MC-E ARRAY LED IMS CREE XLAMP MC-E
803266
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON K2 ARRAY LED IMS LUXEON K2
803265
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON I III & V ARRAY LED IMS LUXEON I/III/V
803127
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON REBEL BRD STAR LED IMS LUXEON REBEL ThermalClad Star IMS Lumileds Rebel
803289
Bergquist Company
Thermal Substrates - MCPCB 1 X 17 SQ. STRIP SEOUL P4 STRIP LED IMS SEOUL SEMI Z-POWER
803125
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON I III & V BRD STAR LED IMS LUXEON I/III/V

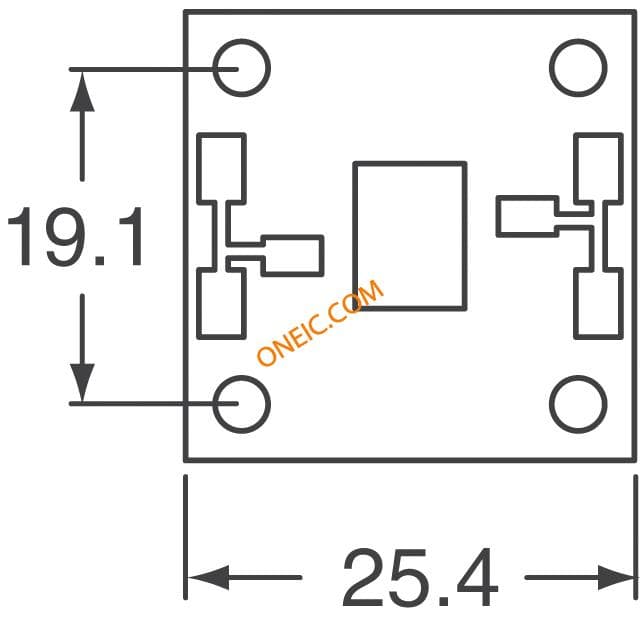

803119
