点击放大查看

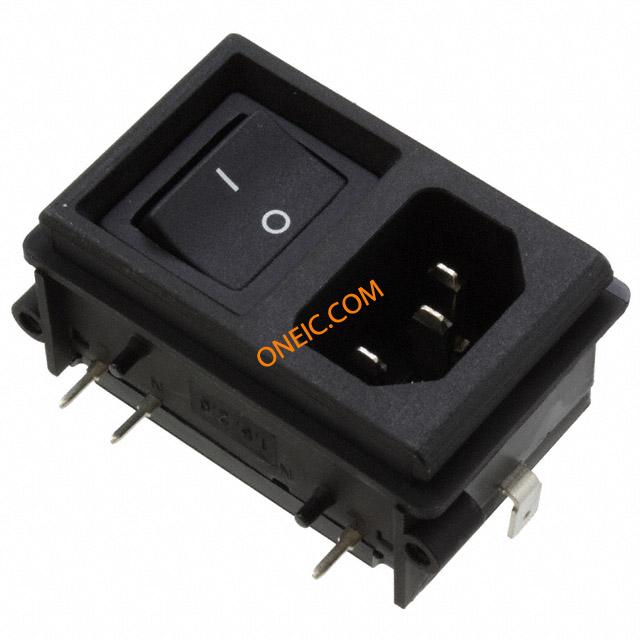

KP01.1152.11
| 制造商 | |
| 描述 | Power Entry Module Unfiltered M 3 POS 250VAC 10A Switch RA 1 Port KP01.1152.11.BF POWER MODULE MOD PWR INLET W/SW PCB 1.5-2 PNL Module; Pwr Entry;AC Inlet with Line Switch;Screw-On Mt;250VAC;Rocker AC Power Entry Modules SCREW-ON PCB 2-POLE INLET, IEC, KP01 Module,PwrEntry;ACInletwithLineSwitch;Screw-OnMt;250VAC;Rocker |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Inlets |
| 交货时间 | 56 Days | 单位包装 | 50 |
| 子类别 | Power Entry Module | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 认证机构 | :CCC |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 10A | 电压 | 250V |
| 滤波器类型 | No | 额定电压 | 250 V |
| 极数 | 2 | 开关功能 | Switched |
| 介电强度 | >2.3kVAC(L-N),>2.8kVAC(L/N-PE)kVAC | 最大额定电流 | 10 A |
| 最小输入电压 | 250 Vac | ||
机械参数
| 宽度 | :56.1mm | 重量 | 1 oz |
| 交流输出口 | :1 | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | IEC/EN 60320-1/C14 |
| 安装样式 | Screw | 连接器样式 | IEC 320-C14 |
| 保险丝座类型 | Fuse Not Required | 面板厚度 | 2mm |
| 壳体材料 | Thermoplastic | 端接样式 | Solder |
| 板面高度 | :36.0mm | 触点数 | 3 |
| 接触件端接 | :Quick Connect | 位数 | 3 |
| 面板开孔尺寸（外形） | :31.2mm | 外壳与棱镜材料 | :Thermoplastic UL94V-0 |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Unfiltered | 带保险丝 | No |
| 连接器性别 | :Plug | 系列 | KP |
| 产品特性 | Cover, Switch On/Off Non Illuminated | 匹配码 | KP01 |
| 固件版本 | CLASS I | 标准交期 | 6 weeks |
环境参数
| NEMA 机架尺寸 | :IP40 | 工作温度 | - 25 C to + 70 C |
