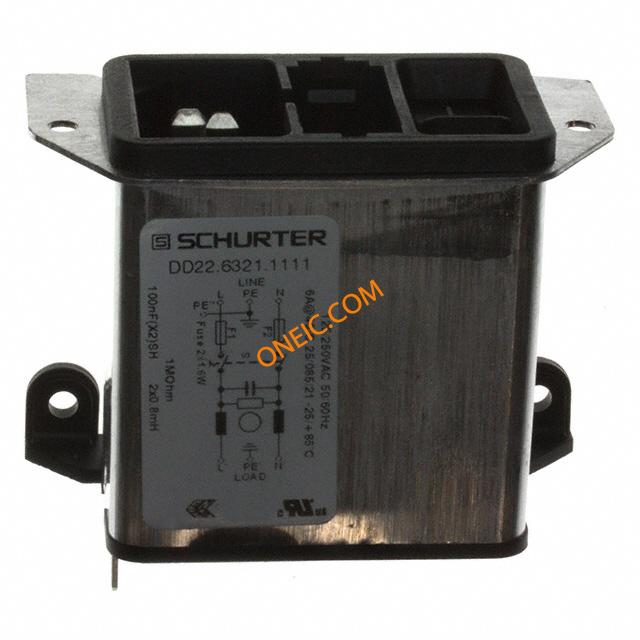

DD22.6321.1111
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 6A Switch/Fuse RA 1 Port DD22 G-STECKER-KOMBI MIT FILTER 6A M5 POWER ENT MOD W/FILTER 6A M5 2PL AC Power Entry Modules Medical Filter 10A 250VAC NO Drawer DD22POWERENTRYMODULEW.FILTER6AM5 Power inlet with filter 6 A 250 VAC, DD22.6321.1111, Schurter |
| 分类 |
商业参数
| 最小起订量 | 20 | 产品 | Inlets |
| 单位包装 | 20 | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | Bulk | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电流 | 6A | 电压 | 250VAC |
| 电感量 | 0.8 mH(2x) | 电阻 | 1 |
| 电容 | 100 nF | 滤波器类型 | Medical |
| 额定电压 | 250 VAC | 开关功能 | Switched |
| 漏电流 | <5 µA | 最大额定电流 | 6 A |
| 最小输入电压 | 250 Vac | ||
机械参数
| 重量 | 3 oz | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | IEC/EN 60320-1/C14|UL 498|CSA C22.2 |
| 安装样式 | Screw | 保险丝座类型 | Sold Separately |
| 壳体材料 | Thermoplastic | 端接样式 | Quick Connect |
| 触点数 | 3 | ||
产品信息
| 类型 | Filtered | 带保险丝 | Yes |
| 系列 | DD22 | 产品特性 | Fuse Holder, Switch On/Off Non-Illuminated |
| 描述 | Medical version, for 2-pole fuse holder | ||
环境参数
| 测试温度 | 25/085/21 | 工作温度 | - 25 C to + 85 C |
