DD21.0121.1111

点击放大查看

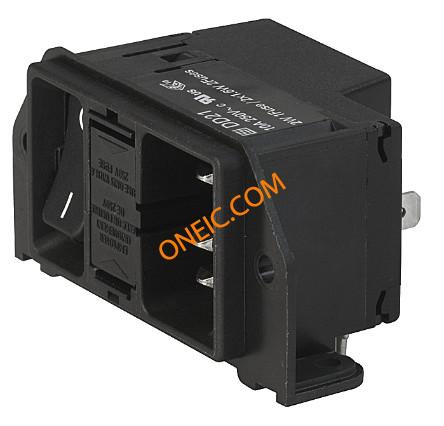

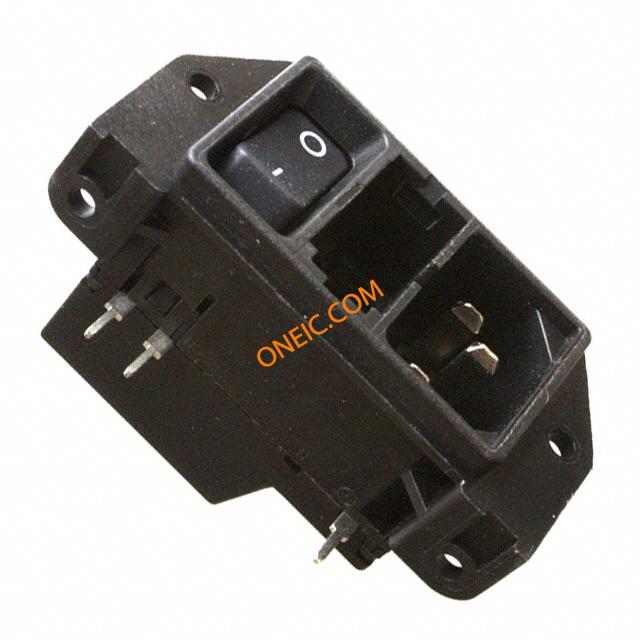

DD21.0121.1111

制造商
Schurter Holding AG
描述
Power Entry Module Unfiltered M 3 POS 250VAC 10A Switch/Fuse RA 1 Port DD21 G-connector combi 10A POWER ENTRY MOD 10A 2PL NON-ILL C14 Male Right Angle Through Hole IEC Connector, Solder Termination, Rated At 10A, 250V ac AC Power Entry Modules No illumination 10A 250VAC W/Drawer INLET, IEC, 2P SWITCH/2P FUSE DD21POWERENTRYMODUL10A Connector: IEC 60320,AC mains; DD21; socket; male; THT; 10A; 85°C Schurter C14 通孔 直角 插头 IEC 插头, 焊接端接, 额定10A, 250 V 交流
分类
连接器解决方案电源输入连接器电源输入连接器
对参数有疑问？问 AI 助手

商业参数

最小起订量40产品Inlets
单位包装40产品类别AC Power Entry Modules
标准包装数量Bulk工厂包装数量40

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
海关税号85366910无铅定义RoHS-conform
材料阻燃等级UL 94 V-0

电气参数

电流10A电压125V
滤波器类型No额定电压250 Vac
极数:2开关功能Switched
最大额定电流10A最小输入电压250 Vac

机械参数

重量1.269863 oz交流输出口:1
引脚样式for PCB端接方式Solder
安装类型Through Hole连接器类型IEC 60529
安装样式Screw连接器样式IEC 320-C14
保险丝座类型Sold Separately壳体材料Thermoplastic
包装数量40尺寸/外形see
连接器 - 电缆C14端接样式Quick Connect - 0.187" (4.7mm)
触点数3接触件端接:Solder
位数3安装孔间距56mm
安装孔直径47 x 28mm第一连接器安装类型:Panel

产品信息

SPG40类型Unfiltered
带保险丝Yes连接器性别Male
系列NO产品特性Fuse Holder, Switch On/Off Non-Illuminated
保险丝尺寸5x20mm匹配码DD2101211111
适配器系列DD21单元数量1
标准交期10 weeks触点配置DPST

环境参数

工作温度- 25 C to + 85 C

文档与媒体

PDF 文档
DD21 Fusedrawer 04/Dec/2013
压缩文件
DD21 Series.igs
压缩文件
DD21 Series.stp
压缩文件
DD21 Series.x_b
压缩文件
DD21 Series.dxf
压缩文件
DD21 Series.wrl
PDF 文档
typ_DD21.pdf
PDF 文档
typ_DD21.pdf
