点击放大查看

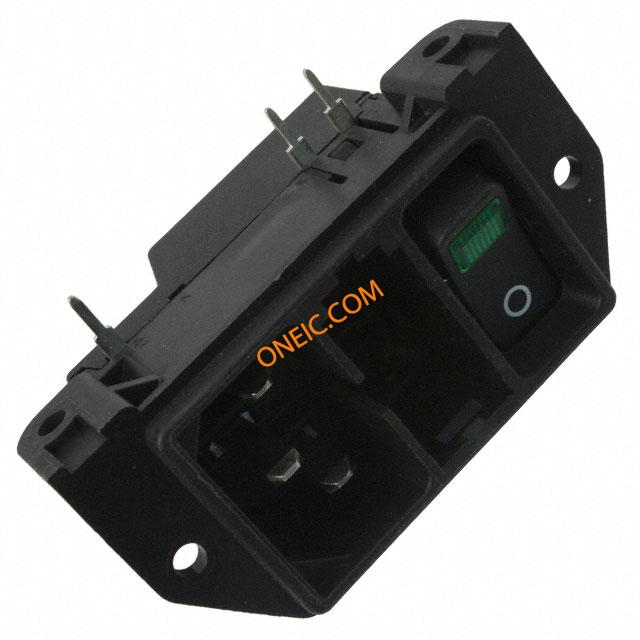

DD21.0114.1111
| 制造商 | |
| 描述 | Power Entry Module Unfiltered M 3 POS 250VAC 10A Switch/Fuse RA 1 Port DD21 G-STECKER-KOMBI 10A POWER ENTRY MOD 10A 1PL ILL GRN AC Power Entry Modules Green illumination 10A 250VAC W/Drawer POWER ENTRY, INLET, IEC, 10A, 250VAC DD21POWERENTRYMODUL10A |
| 分类 |
商业参数
| 最小起订量 | 40 | 产品 | Inlets |
| 单位包装 | 40 | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | Bulk | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 10A | 电压 | 125V |
| 滤波器类型 | No | 额定电压 | 250 V |
| 开关功能 | Switched | 最大额定电流 | 10 A |
| 最小输入电压 | 250 Vac | ||
机械参数
| 重量 | 1.305137 oz | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | IEC 60529 |
| 安装样式 | Screw | 连接器样式 | IEC 320-C14 |
| 保险丝座类型 | Sold Separately | 壳体材料 | Thermoplastic |
| 端接样式 | Quick Connect - 0.187" (4.7mm) | 触点数 | 3 |
| 接触件端接 | :Quick Connect | 位数 | 3 |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Unfiltered | 带保险丝 | Yes |
| 连接器性别 | :Plug | 系列 | DD21 |
| 产品特性 | Fuse Holder, Switch On/Off Illuminated | ||
环境参数
| 工作温度 | - 25 C to + 85 C | ||
