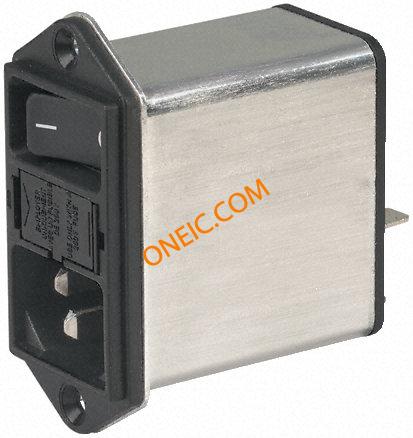

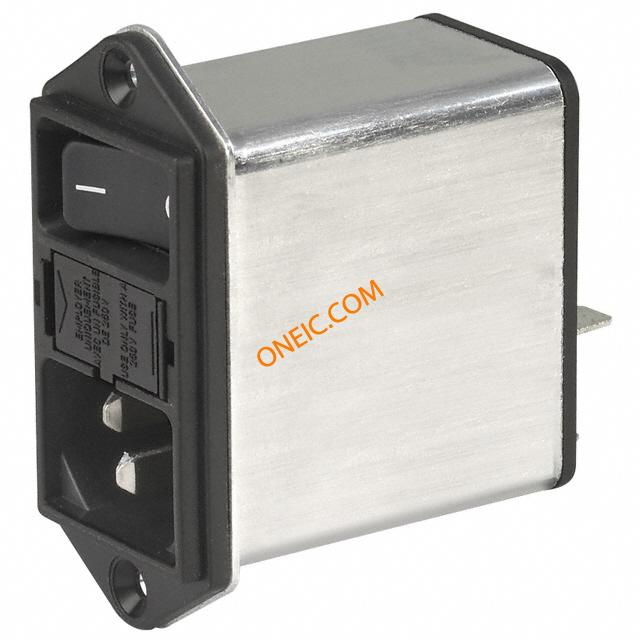

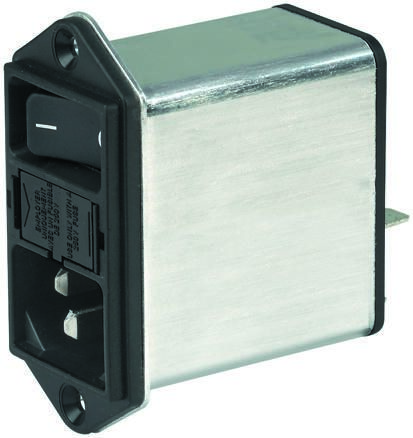

DD12.1121.111
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 1A Switch/Fuse ST 1 Port DD12 G-STECKER-KOMBI MIT FILTER 1A POWER ENTRY MOD W/FILTER 1A 2PL Male C14 IEC Filter Panel Mount,Solder,Rated At 1A,250V ac AC Power Entry Modules Standard Filter QC 10A No Drawer FILTER, IEC, 1A, 2P SWITCH, 2P FUSE DD12POWERENTRYMODULEW.FILTER1A Connector: IEC 60320,AC mains; DD12; socket; male; 1A; 250VAC; 10mH Power inlet with filter 1 A 250 VAC, DD12.1121.111, Schurter Schurter C14 面板安装 插头 IEC 滤波器 5 x 20mm, 快速连接端子，6.3 x 0.8 mm端接, 额定1A, 250 V 交流 |
| 分类 |
商业参数
| 最小起订量 | 20 | 产品 | Inlets |
| 单位包装 | 20 | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | Bulk | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85322900 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 电流 | 1A | 电压 | 250VAC |
| 电感量 | 10mH | 电阻 | 1MΩ |
| 电容 | 2.2nF | 滤波器类型 | General Purpose |
| 额定电压 | 250 V ac | 开关功能 | Switched |
| 漏电流 | :190µA | 最大额定电流 | 1A |
| 最小输入电压 | 250 Vac | 连接器类型 - 电压输入 | without fusedrawer |
| 漏电流（IS(off)）（最大） | :190µA | ||
机械参数
| 深度 | 60.9mm | 宽度 | 66mm |
| 高度 | 31.5mm | 长度 | :55.4mm |
| 重量 | 3 oz | 材料（通用） | :Thermoplastic |
| 端接方式 | Solder Lug | 安装类型 | Flange Mount |
| 连接器类型 | IEC/EN 60320-1/C14|UL 498|CSA C22.2 | 安装样式 | Panel, Screw |
| 保险丝座类型 | Sold Separately | 材料表面处理 | :- |
| 壳体材料 | Thermoplastic | 包装数量 | 20 |
| 连接器 - 电缆 | C14 | 端接样式 | Quick Connect |
| 连接器颜色 | :Black | 面板后深度 | :55mm |
| 触点数 | 3 | 面板开孔尺寸（外形） | :29.8mm |
产品信息
| SPG | 20 | 类型 | Filtered |
| 带保险丝 | Yes | 连接器性别 | Male |
| 系列 | DD12 | 产品特性 | Fuse Holder, Shielded, Switch On/Off, Non-Illuminated |
| 适配器系列 | DD12 | 单元数量 | 1 |
| 触点配置 | DPST | ||
环境参数
| 工作温度 | - 25 C to + 85 C | ||
