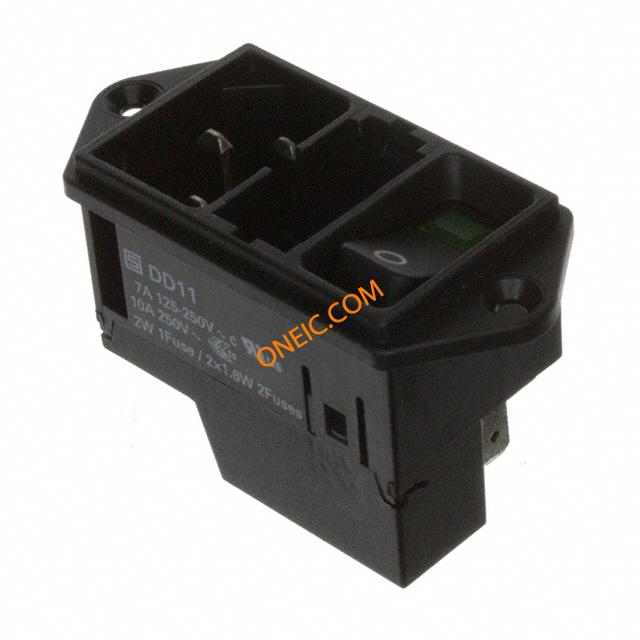

DD11.0114.1111

制造商
Schurter Holding AG
描述
Power Entry Module Unfiltered M 3 POS 250VAC 10A Switch/Fuse ST 1 Port POWER ENT MOD W/O FILTER 1PL GRN AC Power Entry Modules Green illumination QC 10A No Drawer INLET, IEC, 2P SWITCH, W/OUT FUSE DRAWER DD11POWERENTRYMODUL Connector: IEC 60320,AC mains; DD11; socket; male; 10A; 250VAC Inlet C14 Faston 4.8 x 0.8 mm 10 A/250 VAC black Screw mounting L + N + PE, DD11.0114.1111, Schurter
分类
连接器解决方案电源输入连接器电源输入连接器
对参数有疑问？问 AI 助手

商业参数

产品Inlets产品类别AC Power Entry Modules
标准包装数量Bulk工厂包装数量40

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
海关税号85322900材料阻燃等级UL 94 V-0

电气参数

电流7A电压250V
背光green滤波器类型No
额定电压250 V极数1(Fuse),2(Switch)
开关功能Switched介电强度>2.5(L-N)/>3(L/N-PE)kVAC
最大额定电流10 A最小输入电压250 Vac
连接器类型 - 电压输入without fusedrawer

机械参数

深度:65mm宽度:33mm
长度:30.5mm重量1.234589 oz
材料（通用）:Thermoplastic端接方式Solder Lug
安装类型Flange Mount连接器类型IEC/EN 60320-1/C14|UL 498|CSA C22.2
安装样式Screw连接器样式IEC 320-C14
保险丝座类型Sold Separately壳体材料Thermoplastic
包装数量50连接器 - 电缆socket
端接样式Quick Connect - 0.187" (4.7mm)连接器颜色:Black
触点数3接触件端接:Quick Connect
位数3面板开孔尺寸（外形）:28.1mm
第一连接器安装类型:Panel

产品信息

SPG50类型Unfiltered
带保险丝Yes连接器性别:Socket
系列DD11产品特性Cover, Fuse Holder, Switch On/Off Illuminated
保险丝尺寸5x20mm适配器系列DD11
单元数量1固件版本Medical
触点配置DPST
