DD11.0111.1110

制造商
Schurter Holding AG
描述

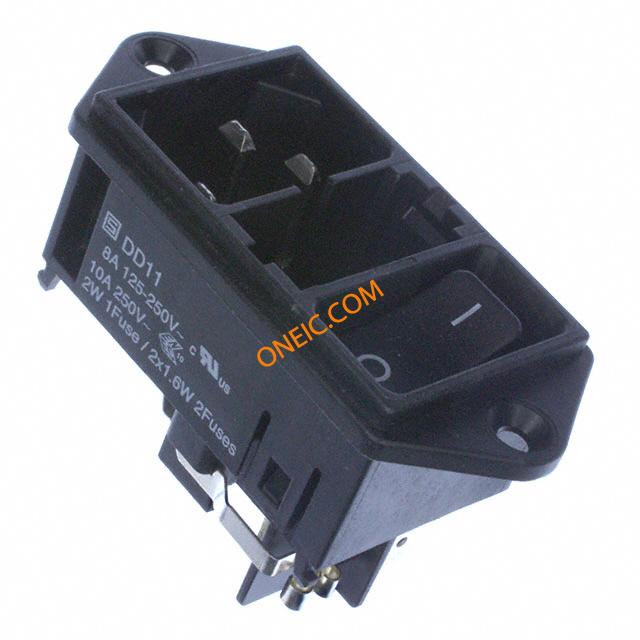

Power Entry Module Unfiltered M 3 POS 250VAC 10A Switch/Fuse ST 1 Port POWER ENT MOD W/O FILTER 1PL Inlet PEM; Screw-on flange; 1-pole fuseholder; 2-pole lineswitch; non-illuminate AC Power Entry Modules No illumination QC 10A No Drawer INLET, IEC, C14, DD11, 10A InletPEM,Screw-onflange,1-polefuseholder,2-polelineswitch,non-illuminate Connector: IEC 60320,AC mains; DD11; socket; male; 10A; 250VAC DD11 G-connector combi
分类
连接器解决方案电源输入连接器电源输入连接器
对参数有疑问？问 AI 助手

商业参数

产品Inlets产品类别AC Power Entry Modules
标准包装数量Bulk工厂包装数量40

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
海关税号85365080材料阻燃等级UL 94 V-0

电气参数

电流8A电压250V
滤波器类型No额定电压250 V
极数1(Fuseholder),2(LineSwitch)开关功能Switched
介电强度>2.5kVAC(L-N),>3kVAC(L/N-PE)kVAC最大额定电流10 A
最小输入电压250 Vac连接器类型 - 电压输入without fusedrawer

机械参数

重量1.128767 oz端接方式Solder Lug
安装类型Flange Mount连接器类型IEC/EN 60320-1/C14|UL 498|CSA C22.2
安装样式Screw连接器样式IEC 320-C14
保险丝座类型Sold Separately面板厚度8mm,2mm(Rear)
壳体材料Thermoplastic包装数量50
连接器 - 电缆socket端接样式Quick Connect - 0.187" (4.7mm)
触点数3面板开孔形状47.1×28.1mm
接触件端接:Quick Connect位数3
第一连接器安装类型:Panel

产品信息

SPG50类型Unfiltered
带保险丝Yes连接器性别:Plug
系列DD11产品特性Fuse Holder, Switch On/Off Non-Illuminated
保险丝尺寸5x20mm适配器系列DD11
单元数量1固件版本Medical
触点配置DPST

环境参数

工作温度- 25 C to + 85 C

文档与媒体

PDF 文档
DD11 Fusedrawer 04/Dec/2013
压缩文件
DD11 Series.x_b
压缩文件
DD11 Series.dxf
压缩文件
DD11 Series.igs
压缩文件
DD11 Series.wrl
压缩文件
DD11 Series.stp
PDF 文档
typ_DD11.pdf
PDF 文档
1750543.pdf
PDF 文档
typ_DD11.pdf
