点击放大查看

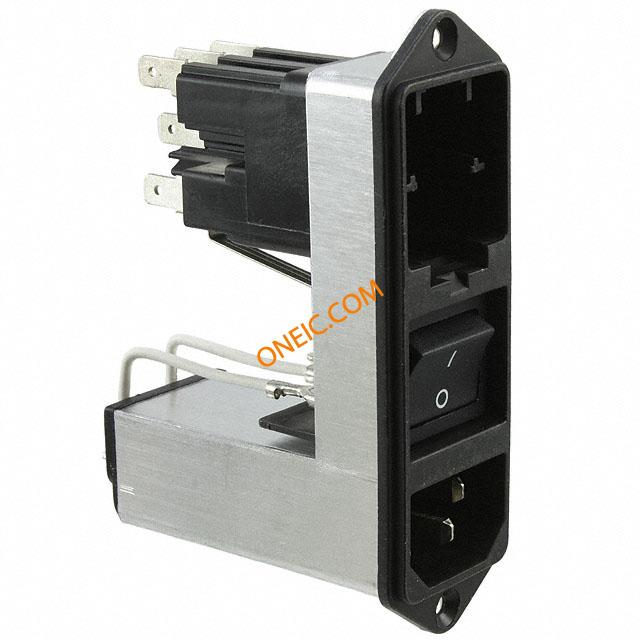

CGC0.6101.151
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 4A Switch/Fuse/Voltage Selector ST 1 Port CG G-STECKER-KOMBI MIT FILTER 4A M5 MOD PWR 4A MED FILTER QC PNL MNT FUSEDRAWER;69 X 97 X 30mm;4A;MEDICAL AC Power Entry Modules 4A w/ 2P switch MED 2P fuseholder FUSEDRAWER;69X97X30mm;4A,MEDICAL |
| 分类 |
商业参数
| 最小起订量 | 10 | 产品 | Inlets |
| 交货时间 | 49 Days | 单位包装 | 10 |
| 子类别 | Power Entry Module | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | Bulk | 工厂包装数量 | 5 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 4A | 电压 | 125/250VAC |
| 电感量 | 2×1.5mH | 电阻 | 1Megohms |
| 电容 | 68nF | 滤波器类型 | Medical |
| 额定电压 | 125 V / 250 V | 极数 | 2 |
| 开关功能 | Switched | 漏电流 | <5μA |
| 介电强度 | >1.7kVDC(L-N),>2.7kVDC(L/N-PE) | 最大额定电流 | 4 A |
| 最小输入电压 | 250 Vac | ||
机械参数
| 重量 | 3.280478 oz | 端接方式 | Solder Lug |
| 安装类型 | Flange Mount | 连接器类型 | IEC/EN 60320-1/C14|UL 498|CSA C22.2 |
| 安装样式 | Screw | 保险丝座类型 | Sold Separately |
| 面板厚度 | 8mm | 壳体材料 | Thermoplastic |
| 端接样式 | Quick Connect | 触点数 | 3 |
| 面板开孔形状 | 26.5×89mm | ||
产品信息
| 类型 | Filtered | 带保险丝 | Yes |
| 连接器性别 | Male | 系列 | CG |
| 产品特性 | Fuse Holder, Switches, On/Off, Non-Illuminated, Voltage Selector | 固件版本 | Medical |
环境参数
| 工作温度 | - 25 C to + 85 C | ||
