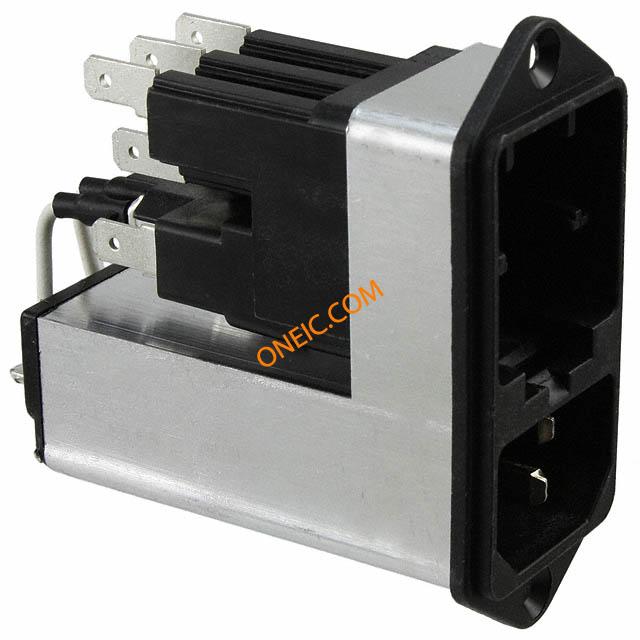

点击放大查看
CEL0.6100.151
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 10A Fuse/Voltage Selector ST 1 Port CE G-STECKER-KOMBI MIT FILTER 10A M5 MOD PWR MED FILTER 10A 2POLE PNL PowerEntryModule with Medical Version Line Filter;250VAC;10 A;2-Pole Fuseholder AC Power Entry Modules CE PWR ENTRY MOD W 250VAC 10 A 2 POLE PowerEntryModulewithMedicalVersionLineFilter,250VAC;10A,2-PoleFuseholder |
| 分类 |
商业参数
| 最小起订量 | 10 | 产品 | Inlets |
| 单位包装 | 10 | 标准包装数量 | Bulk |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电流 | 10A | 电压 | 125/250VAC |
| 电感量 | 2×0.3mH | 电阻 | 1Megohms |
| 电容 | 68nF | 滤波器类型 | Medical |
| 额定电压 | 125VAC(UL/CSA),250VAC(IEC) | 极数 | 2 |
| 开关功能 | Not Switched | 漏电流 | <5μA |
| 介电强度 | >1.7kVDC(L-N),>2.7kVDC(L/N-PE) | 最大额定电流 | 10A |
| 最小输入电压 | 250 Vac | ||
机械参数
| 重量 | 2.892465 oz | 端接方式 | QuickConnect |
| 安装类型 | Flange Mount | 连接器类型 | IEC/EN 60320-1/C14 |
| 安装样式 | Panel/Screw-On | 保险丝座类型 | Sold Separately |
| 面板厚度 | 8mm | 壳体材料 | Thermoplastic |
| 端接样式 | Quick Connect | 触点数 | 3 |
| 面板开孔形状 | 28.5×61.5mm | ||
产品信息
| 类型 | Filtered | 带保险丝 | Yes |
| 连接器性别 | Male | 系列 | CE |
| 产品特性 | Fuse Holder, Switch, Voltage Selector | 固件版本 | Medical |
环境参数
| 工作温度 | -25to+85°C | ||
文档与媒体
