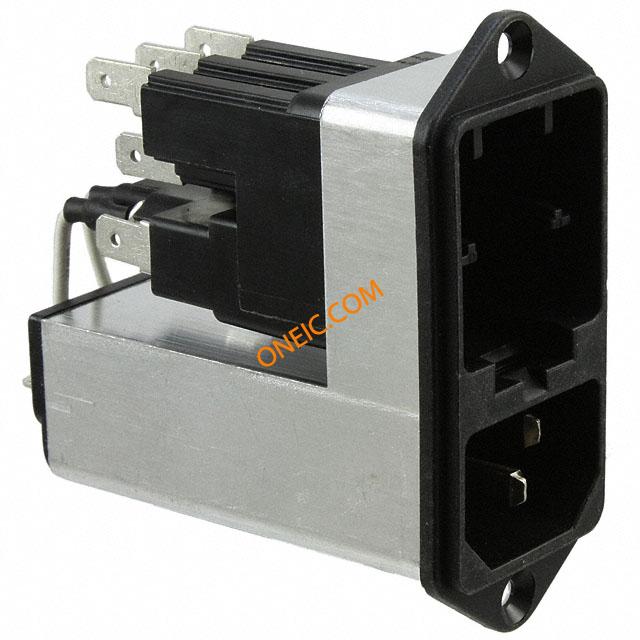

CE60.6100.151
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 10A Fuse/Voltage Selector ST 1 Port MOD PWR STD FILTER 10A 2POLE PNL Casing with Standard RFI Filter; 2-pole fusing; 10A AC Power Entry Modules CE POWER ENTRY MOD W. FILTER 10A POWER ENTRY MODULE, PLUG, 10A CasingwithStandardRFIFilter,2-polefusing,10A |
| 分类 |
商业参数
| 产品 | Inlets | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
电气参数
| 电流 | 10A | 电压 | 125/250VAC |
| 电感量 | 2×0.3mH | 电容 | 68nF |
| 滤波器类型 | General Purpose | 额定电压 | 250 VAC |
| 极数 | 2 | 开关功能 | Not Switched |
| 漏电流 | <0.5mA | 介电强度 | >1.7kVDC(L-N),>2.7kVDC(L/N-PE) |
| 最大额定电流 | 10 A | 最小输入电压 | 250 Vac |
机械参数
| 重量 | 2.892465 oz | 交流输出口 | :1 |
| 端接方式 | QuickConnect | 安装类型 | Flange Mount |
| 连接器类型 | IEC/EN 60320-1/C14 | 安装样式 | Panel |
| 保险丝座类型 | Sold Separately | 面板厚度 | 8mm |
| 壳体材料 | Thermoplastic | 端接样式 | Quick Connect |
| 触点数 | 3 | 面板开孔形状 | 28.5×61.5mm |
| 接触件端接 | :Quick Connect | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | Filtered | 带保险丝 | Yes |
| 连接器性别 | :Plug | 系列 | CE |
| 产品特性 | Fuse Holder, Switch, Voltage Selector | 固件版本 | Standard |
环境参数
| 工作温度 | - 25 C to + 85 C | ||
