点击放大查看

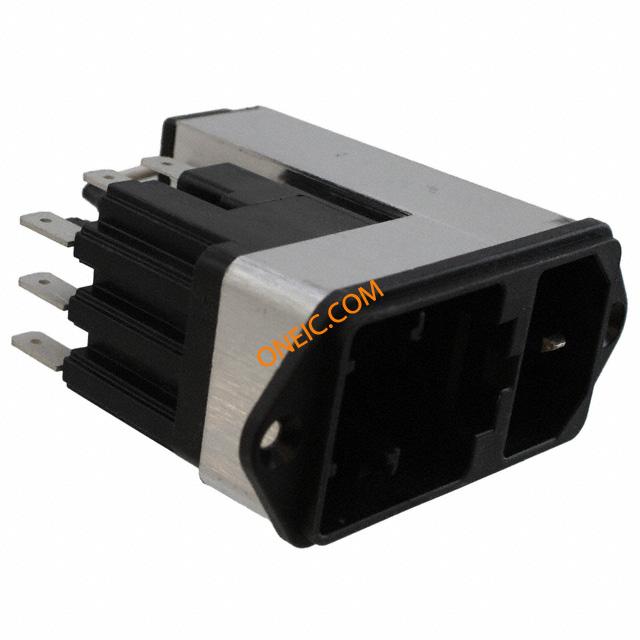

CE30.6100.151
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 4A Fuse/Voltage Selector ST 1 Port CE G-STECKER-KOMBI MIT FILTER 4A MOD PWR STD FILTER 4A 2POLE PNL AC Power Entry Modules CE PWR ENTRY MODULE W. FILTER 4A CasingwithstdRFIFilter,6A,upto250Vmax,50/60HZ,2-polefusing |
| 分类 |
商业参数
| 最小起订量 | 10 | 产品 | Inlets |
| 交货时间 | 49 Days | 单位包装 | 10 |
| 子类别 | Power Entry Module | 标准包装数量 | Bulk |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电流 | 4A | 电压 | 125/250VAC |
| 电感量 | 2×1.5mH | 电容 | 68nF |
| 滤波器类型 | General Purpose | 额定电压 | 125VAC(UL/CSA),250VAC(IEC) |
| 极数 | 2 | 开关功能 | Not Switched |
| 漏电流 | <0.5mA | 介电强度 | >1.7kVDC(L-N),>2.7kVDC(L/N-PE) |
| 最大额定电流 | 4A | 最小输入电压 | 250 Vac |
机械参数
| 重量 | 2.892465 oz | 端接方式 | QuickConnect |
| 安装类型 | Flange Mount | 连接器类型 | IEC/EN 60320-1/C14 |
| 安装样式 | Panel/Screw-On | 保险丝座类型 | Sold Separately |
| 面板厚度 | 8mm | 壳体材料 | Thermoplastic |
| 端接样式 | Quick Connect | 触点数 | 3 |
| 面板开孔形状 | 28.5×61.5mm | ||
产品信息
| 类型 | Filtered | 带保险丝 | Yes |
| 连接器性别 | Male | 系列 | CE |
| 产品特性 | Fuse Holder, Switch, Voltage Selector | 固件版本 | Standard |
| 行业别名 | FKB-55-0003 | ||
环境参数
| 工作温度 | -25to+85°C | ||
