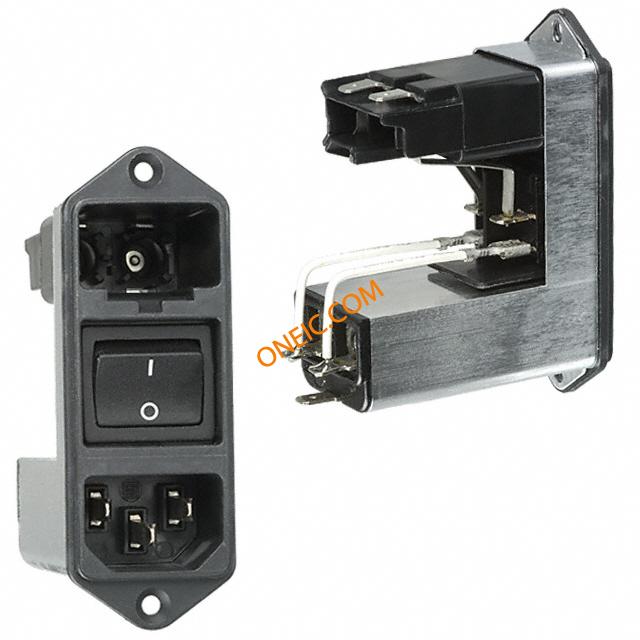

CD64.1101.151

点击放大查看

CD64.1101.151

制造商
Schurter Holding AG
描述
Power Entry Module Filtered M 3 POS 250VAC 10A Switch/Fuse ST 1 Port CD G-STECKER-KOMBI MIT FILTER 10A MOD PWR 5-FUNCT 10A 4.8QC SCREW Power Entry Module; 10 Amps; Standard Filter; Fuse Holder - 2 Pole AC Power Entry Modules CD PWR ENTRY MODULE W. FILTER 10A INLET FILTER, IEC, C14, CD, 10A PowerEntryModule,10Amps,StandardFilter,FuseHolder-2Pole
分类
连接器解决方案电源输入连接器电源输入连接器
对参数有疑问？问 AI 助手

商业参数

最小起订量10产品Inlets
单位包装10标准包装数量Bulk
工厂包装数量10

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
海关税号85369010

电气参数

电流10A电压125/250VAC
电感量2×0.3mH电容:0.068µF
滤波器类型General Purpose额定电压:250VAC
极数2开关功能Switched
电感量范围:300µH漏电流<0.5mA
介电强度>1.7kVDC(L-N),>2.7kVDC(L/N-PE)最大额定电流:10A
最小输入电压250 Vac漏电流（IS(off)）（最大）:500µA

机械参数

重量2.892465 oz端接方式Solder Lug
安装类型Flange Mount连接器类型IEC/EN 60320-1/C14|UL 498|CSA C22.2
安装样式Panel/Screw-On保险丝座类型Sold Separately
面板厚度8mm壳体材料Thermoplastic
端接样式Quick Connect触点数3
面板开孔形状26.5×75.5mm

产品信息

类型Filtered带保险丝Yes
连接器性别Male系列CD
产品特性Fuse Holder, Switch On/Off Non-Illuminated固件版本Standard

环境参数

工作温度-25to+85°C

文档与媒体

PDF 文档
RoHS, EMC Products
压缩文件
CD Series.stp
压缩文件
CD Series.igs
压缩文件
CD Series.x_b
压缩文件
CD Series.wrl
PDF 文档
typ_CD.pdf
PDF 文档
CD Medical Version
PDF 文档
typ_cd.pdf
