点击放大查看

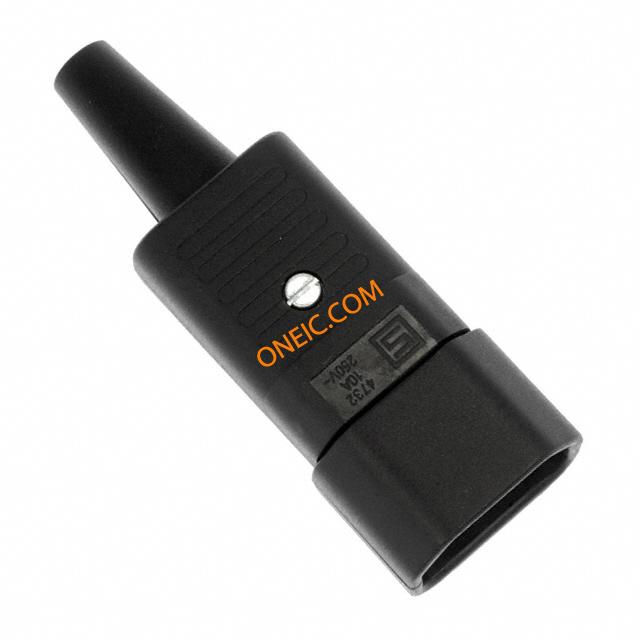

4732.0000
| 制造商 | |
| 描述 | Conn Power PL 3 POS Screw ST Cable Mount 3 Terminal 1 Port CONN PLUG STRAIGHT ENTRY 18AWG C14 Male Straight Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac AC Power Entry Modules STRAIGHT INLET PLUG PLUG, IEC, 10A, FREE CordPlugAssembly;10A;250VAC;10Megohms(Min.)@500VDC;2kV@50Hz Connector: IEC 60320,AC mains; C14 (E); plug; male; for cable; 10A Cable device plug black, 4732.0000, Schurter Schurter C14 电缆安装 直向 插头 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流 4732 Connector cabel 10A 70° |
| 分类 |
商业参数
| 最小起订量 | 100 | 产品 | Inlets |
| 单位包装 | 100 | 其他名称 | 486-1052 |
| 产品类别 | AC Power Entry Modules | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 标准 | UL,CSA,VDE | 海关税号 | 85369010 |
| 认证机构 | :CCC | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 10A | 电压 | 250V |
| 滤波器类型 | No | 额定电压 | 250 Vac |
| 开关功能 | Not Switched | 介电强度 | 2kV@50Hz |
| 最大额定电流 | 10A | 导体数量 | 3Conductors |
| 绝缘电阻 | 10Megohms(Min.)@500VDC | 最小供电电压 | 250VAC |
| 连接器类型 - 电压输入 | C14 (E) | ||
机械参数
| 深度 | 81 mm | 宽度 | :20.8mm |
| 高度 | 20.8 mm | 长度 | :28.7mm |
| 重量 | 1.058219 oz | 交流输出口 | :1 |
| 导线线规 | #18 | 方向 | straight |
| 端接方式 | Screw | 线缆护套颜色 | Black |
| 安装类型 | Cable Mount | 线径 | 18AWG |
| 电缆直径 | 8.5mm(Max.) | 连接器类型 | Plug, Male Pins |
| 安装样式 | Cable | 连接器样式 | IEC 320-C14 |
| 保险丝座类型 | Drawer Not Required | 本体材料 | Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 28.7 mm |
| 包装数量 | 100 | 连接器 - 电缆 | C14 |
| 端接样式 | IDC | 连接器颜色 | :Black |
| 触点数 | 3 POS | 接触件端接 | :Screw |
| 位数 | 3 | 绝缘材料 - 材质 | Thermoplastic |
| 线规或范围 - mm² | 8.5mm | 外壳与棱镜材料 | :Black noryl |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :8.5mm |
产品信息
| SPG | 100 | 类型 | Power |
| 带保险丝 | No | 连接器性别 | PL |
| 系列 | 4732 | 保险丝类型 | :10A |
| 端口数 | 1 Port | 单元数量 | 1 |
环境参数
| 温度额定值 | -25to+70°C | 工作温度 | - 25 C to + 70 C |
| 结工作温度 | 70C | ||
