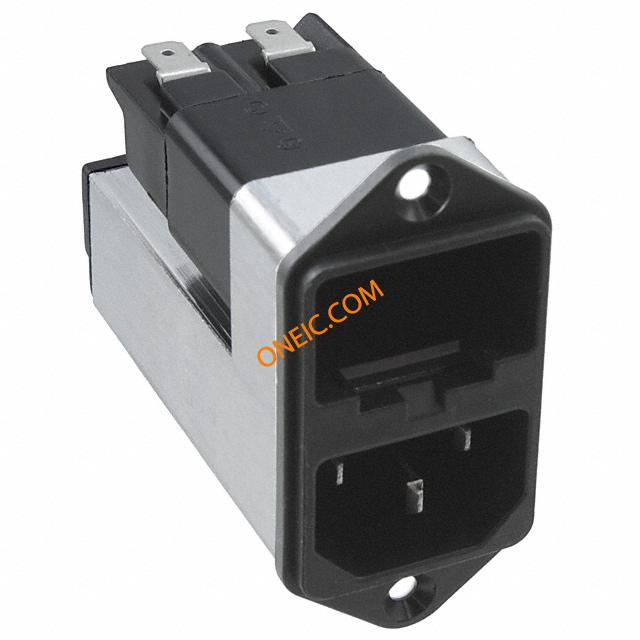

4303.5004
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 6A Fuse ST 1 Port KFC G-STECKER-KOMBI MIT FILTER 6A MOD PWR ENTRY 2POS HLDR 6A PNL AC Power Entry Modules KFC PWR ENTRY MODULE W. FILTER 6A INLET FILTER, IEC, C14, KFC, 6A KFCPOWERENTRYMODULEW.FILTER6A Connector: IEC 60320,AC mains; KFC; C14 (E), with filter,2x fuse Power inlet with filter 6 A 250 VAC, 4303.5004, Schurter |
| 分类 |
商业参数
| 最小起订量 | 10 | 产品 | Inlets |
| 交货时间 | 49 Days | 单位包装 | 10 |
| 子类别 | Power Entry Module | 标准包装数量 | Bulk |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85363090 | ||
电气参数
| 电流 | 6A | 电压 | 125/250VAC |
| 电感量 | 0.8mH | 电容 | :0.068µF |
| 滤波器类型 | General Purpose | 额定电压 | :250VAC |
| 开关功能 | Switched | 电感量范围 | :800µH |
| 最大额定电流 | :6A | 最小输入电压 | 250 Vac |
| 连接器类型 - 电压输入 | without fusedrawer | 漏电流（IS(off)）（最大） | :500µA |
机械参数
| 重量 | 2.398629 oz | 端接方式 | Solder Lug |
| 安装类型 | Flange Mount | 连接器类型 | IEC/EN 60320-1/C14|UL 498|CSA C22.2 |
| 安装样式 | flange (2 holes), for panel mounting | 保险丝座类型 | Sold Separately |
| 包装数量 | 10 | 连接器 - 电缆 | socket |
| 端接样式 | Quick Connect | 触点数 | 3 |
产品信息
| SPG | 10 | 类型 | Filtered |
| 带保险丝 | Yes | 系列 | KFC |
| 产品特性 | Fuse Holder | 保险丝尺寸 | 5x20mm, 6,3x32mm |
| 适配器系列 | KFC | 单元数量 | 1 |
| 行业别名 | FKP-55-0004 | ||
